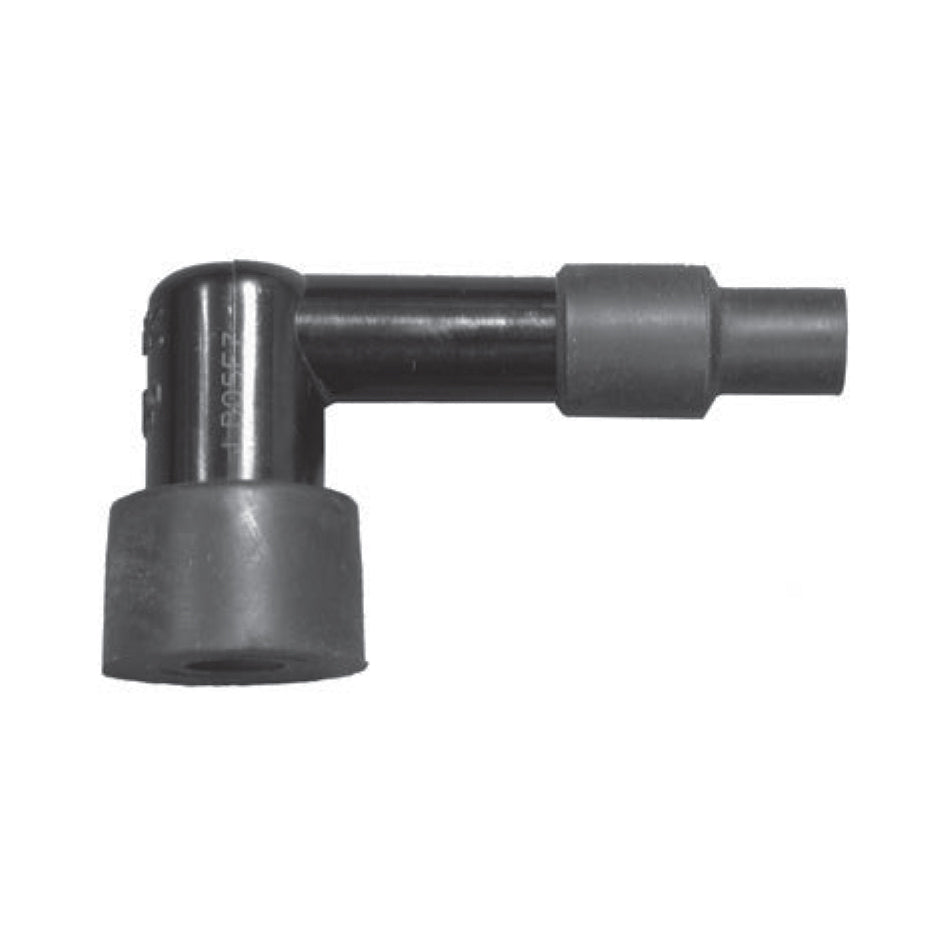

NGK Spark Plug Cap LB05EZ (8744) - Black

NGK LB05EZ Black Spark Plug Cap 8744

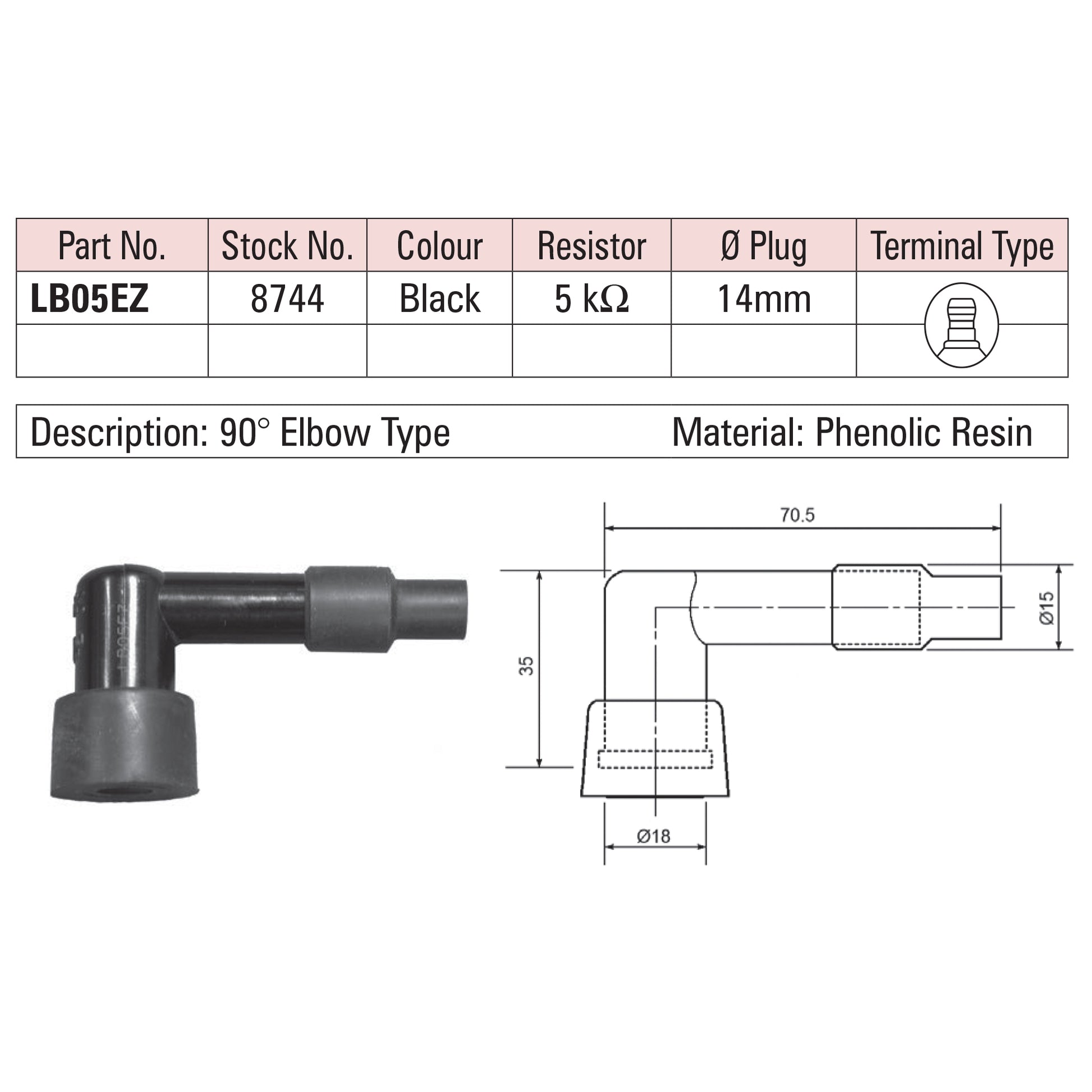

• Fits NGK B series plugs with solid terminals
• 90 degree elbow
• 14mm
• Resistance 5 kilo ohm
• Terminal nut
• NGK 8744
• Recreational/anti-vibration

Water resistant, vibration resistant and tough EPDM (Ethylene Propylene Diene Monomer) rubber construction at each end preventing moisture from causing electrical leakage and with a resistor in between the plug terminal and the high-tension lead connection prevents interior shorting and maintains a steady resistance.

The NGK range of resistor covers are designed to give perfect noise suppression across all frequencies whilst engine performance is not adversely affected whatsoever.

Featuring a resistor element pressed in between the plug terminal and the high tension wire connection, the construction is extremely durable, the resistor element is long enough to prevent interior flashover, and steady resistance is maintained. Superlative ceramic materials are incorporated that resist deterioration and have small resistance variation under over-load, whilst the plug connector is made of sturdy phenolic resin, practically oblivious to tremendous heat and high tension, and very rugged rubber material. The heat press insertion makes the construction all the more tough and vibration-resistant. Special rubber liners on both ends prevent moisture from causing electrical leakage.

All motorcycle manufacturers now comply with current legislation which demands a standard of noise suppression on every vehicle. This is achieved usually by fitting NGK resistor covers though in many cases a combination of NGK resistor covers and NGK resistor spark plugs (R type) is necessary to satisfy the ministry tests. It is emphasized that despite the use of both resistor covers and spark plugs in such engines, due to the unique and superior construction of NGK branded products there is no loss of performance or shortening of service life

Fitment Summary
Compatible with 92 models (yearly).

• Polaris: Big Boss 250 4x6 6x6, Big Boss 3006x6, P 350 Big Boss, P 350L, P 400L, Scrambler 400, Scrambler 400L, Scrambler 50, Scrambler 90X, Sport 400, Sportsman 300Ace, Sportsman 325, Sportsman 330Ace, Sportsman 330 Ace Euro, Sportsman 330 Ace HD, Sportsman 330Efi, Sportsman 335, Sportsman 335 Worker, Sportsman 350, Sportsman 400, Sportsman 450, Sportsman 90, Xpress 300L
