NGK Spark Plug Cap LB10EHF (8055) - Black

NGK Plug Cap

---

The NGK LB10EHF spark plug cap is a 90-degree elbow-type cap designed for spark plugs with terminal nut and a 10mm, 12mm, or 14mm diameter.It's a non-resistor type cap, meaning it doesn't have a built-in resistor to suppress radio frequency interference. The LB10EHF cap is made of durable phenolic resin and EPDM rubber, and it's designed to withstand high heat and vibration while remaining waterproof.>

• 90-degree elbow Allows for easy connection to spark plugs in tight spaces.
• Non-resistor: Suitable for applications where suppression of electromagnetic interference is not a primary concern.
• Durable materials: Made of phenolic resin and EPDM rubber for heat and vibration resistance.
  Waterproof: Designed to prevent water ingress and electrical leakage.
• Universal fit: Compatible with 10mm, 12mm, and 14mm spark plugs.
• The LB10EHF cap is designed for spark plugs with non-removable terminal nut.
• It is not suitable for spark plugs with a removable terminal - See LZFH cap for that

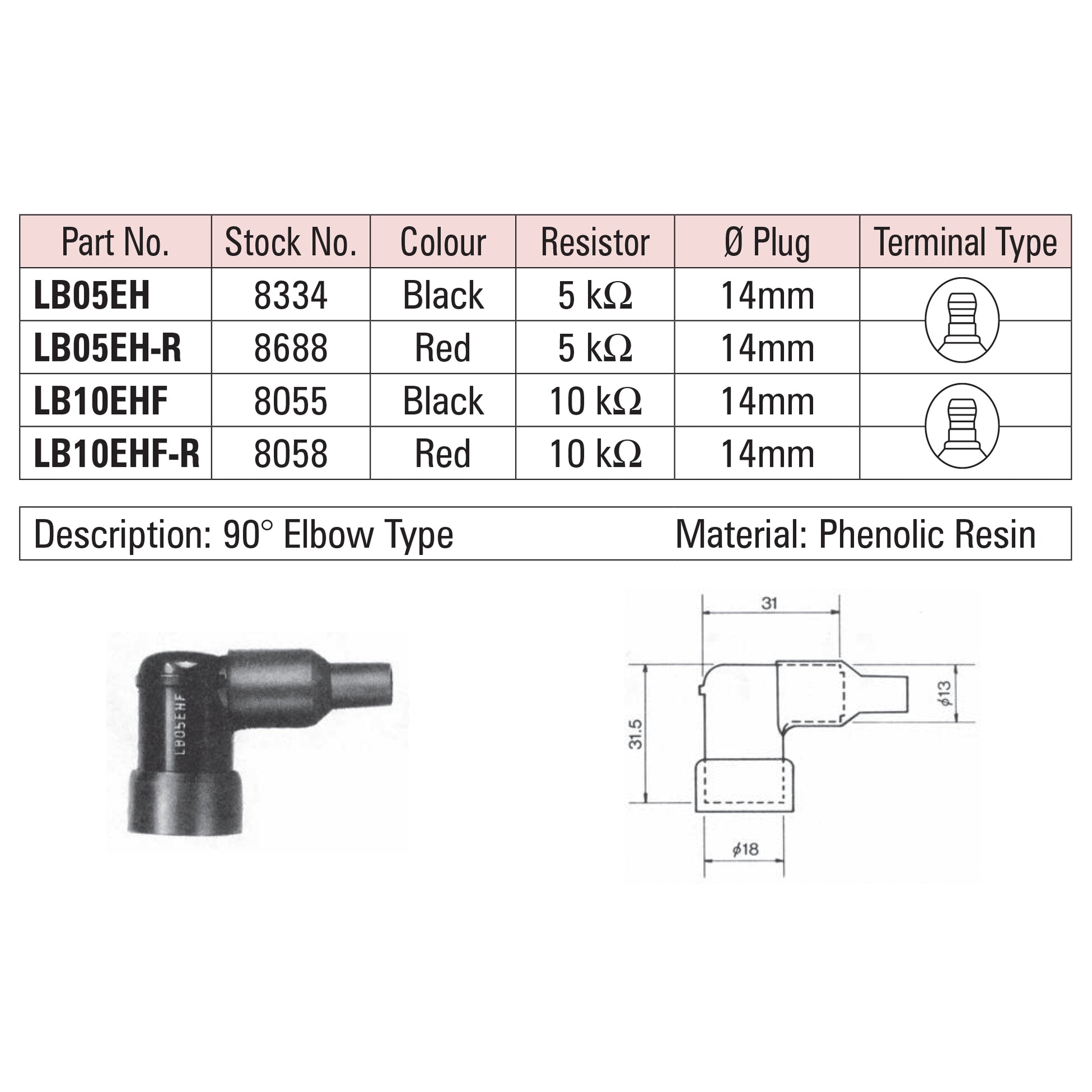

NGK LB10EHF Black Spark Plug Cover

Part Manufacturer	NGK
Manufacturer Part Number	8055
Weight	19g
Length	60mm
Height	20mm
Width	45mm

p>The NGK range of resistor covers are designed to give perfect noise suppression across all frequencies whilst engine performance is not adversely affected whatsoever.

Featuring a resistor element pressed in between the plug terminal and the high tension wire connection, the construction is extremely durable, the resistor element is long enough to prevent interior flashover, and steady resistance is maintained. Superlative ceramic materials are incorporated that resist deterioration and have small resistance variation under over-load, whilst the plug connector is made of sturdy phenolic resin, practically oblivious to tremendous heat and high tension, and very rugged rubber material. The heat press insertion makes the construction all the more tough and vibration-resistant. Special rubber liners on both ends prevent moisture from causing electrical leakage.

All motorcycle manufacturers now comply with current legislation which demands a standard of noise suppression on every vehicle. This is achieved usually by fitting NGK resistor covers though in many cases a combination of NGK resistor covers and NGK resistor spark plugs (R type) is necessary to satisfy the ministry tests. It is emphasized that despite the use of both resistor covers and spark plugs in such engines, due to the unique and superior construction of NGK branded products there is no loss of performance or shortening of service life

Manufacturer Part No. (MPN): 8055
