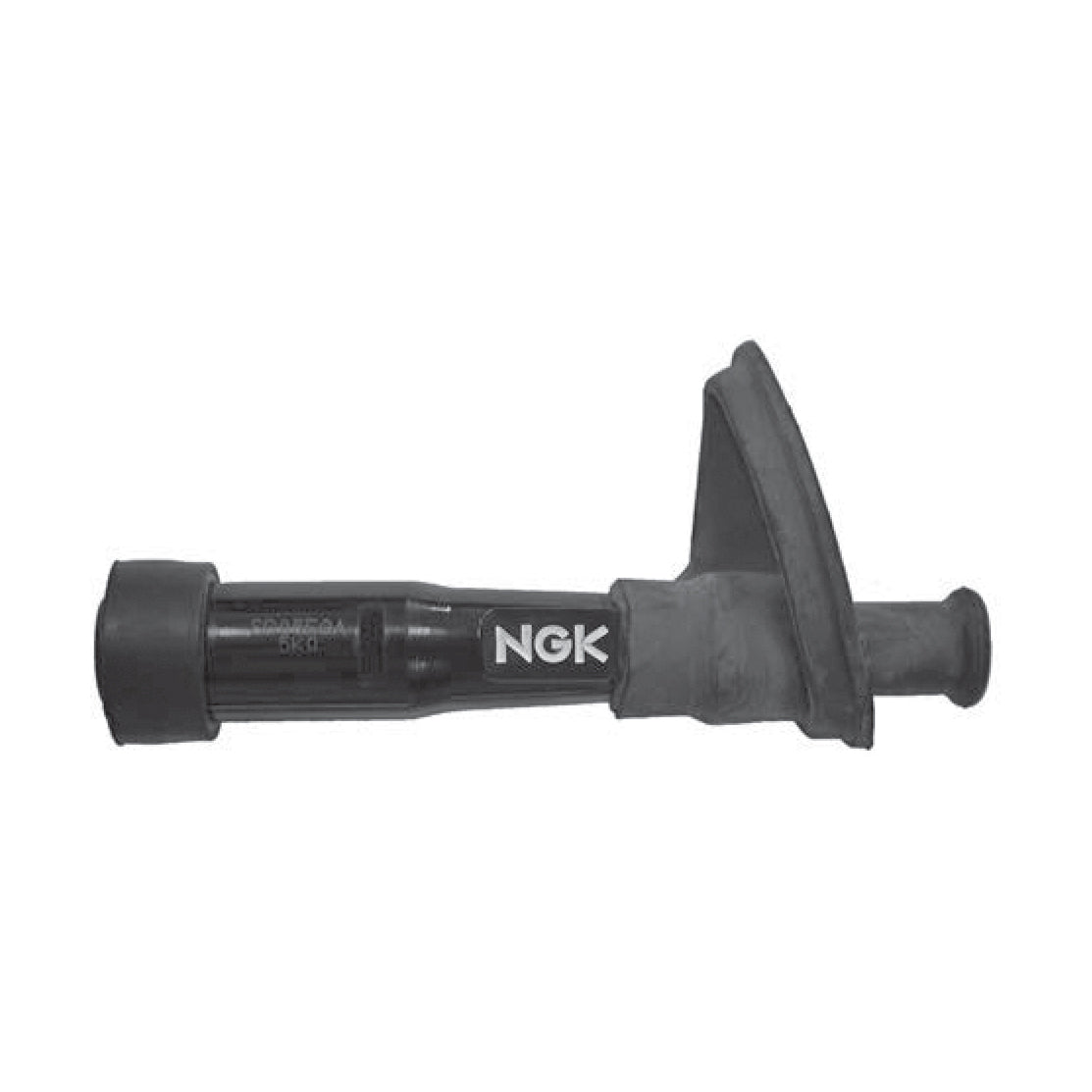

NGK Spark Plug Cap SD05FGA (8683) - Black

NGK SD05FGA Black Spark Plug Cap Threaded End

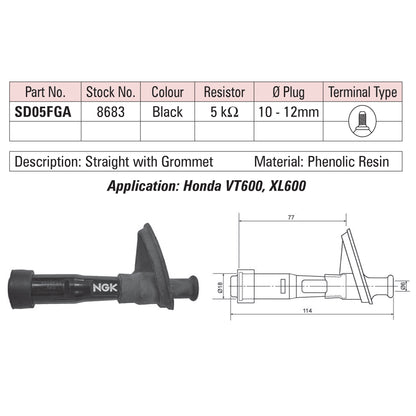

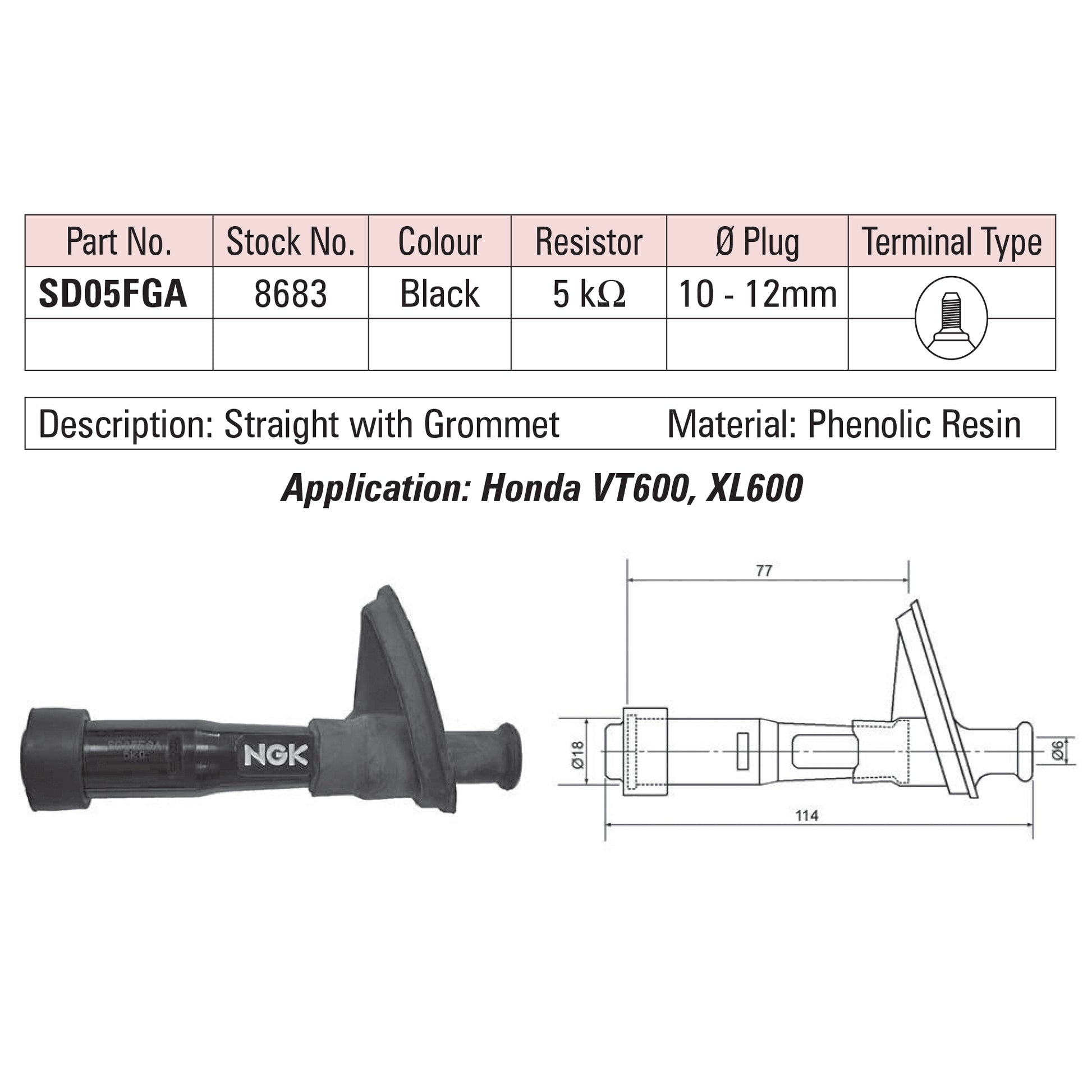

• NGK OEM: SD05FGA
• NGK stock number: 8683
• Diameter of plug: 10-12mm
• Fits spark plugs with threaded terminals
• Resistor: 5kΩ
• Description: Straight with Grommet
• Material: Phenolic Resin

Note:

• Connector types whose designation ends in "E" (e.g. VD05E) are compatible with spark plugs with a connecting nut or integrated connection
• Connector types whose designation ends in "F" (e.g. VD05F) are compatible with spark plugs with a connecting thread

The NGK range of resistor covers are designed to give perfect noise suppression across all frequencies whilst engine performance is not adversely affected whatsoever.

All motorcycle manufacturers now comply with current legislation which demands a standard of noise suppression on every vehicle. This is achieved usually by fitting NGK resistor covers though in many cases a combination of NGK resistor covers and NGK resistor spark plugs (R type) is necessary to satisfy the ministry tests. It is emphasized that despite the use of both resistor covers and spark plugs in such engines, due to the unique and superior construction of NGK branded products there is no loss of performance or shortening of service life.

The NGK range of resistor covers are designed to give perfect noise suppression across all frequencies whilst engine performance is not adversely affected whatsoever.

Featuring a resistor element pressed in between the plug terminal and the high tension wire connection, the construction is extremely durable, the resistor element is long enough to prevent interior flashover, and steady resistance is maintained. Superlative ceramic materials are incorporated that resist deterioration and have small resistance variation under over-load, whilst the plug connector is made of sturdy phenolic resin, practically oblivious to tremendous heat and high tension, and very rugged rubber material. The heat press insertion makes the construction all the more tough and vibration-resistant. Special rubber liners on both ends prevent moisture from causing electrical leakage.

All motorcycle manufacturers now comply with current legislation which demands a standard of noise suppression on every vehicle. This is achieved usually by fitting NGK resistor covers though in many cases a combination of NGK resistor covers and NGK resistor spark plugs (R type) is necessary to satisfy the ministry tests. It is emphasized that despite the use of both resistor covers and spark plugs in such engines, due to the unique and superior construction of NGK branded products there is no loss of performance or shortening of service life

Fitment Summary
Compatible with 86 models (yearly).

• Honda: NTV600 J, NTV600 K, NTV600 L, NTV600 M, NTV600 N, VT600 C, VT600 CJ, VT600 CK, VT600 CL, VT600 CM, VT600 CN, VT600 CP, VT600 CR, VT600 CS, VT600 CT, VT600 CV, VT600 CW, VT600 CX, VT600 CY, VT750 C, VT750 C2, VT750 C2B, VT750 CD, VT750 DC, VT750 S, VT750 Shadow RC50, XRV650 J, XRV650 K, XRV650 L, XRV750 L, XRV750 M, XRV750 N, XRV750 P, XRV750 R, XRV750 S, XRV750 T, XRV750 V, XRV750 W, XRV750 X, XRV750 Y, XRV750 YA, XRV750 YB, XRV750 YC
