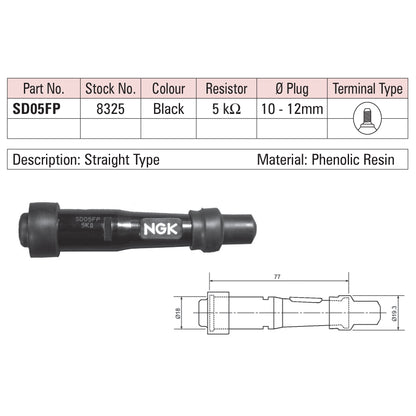

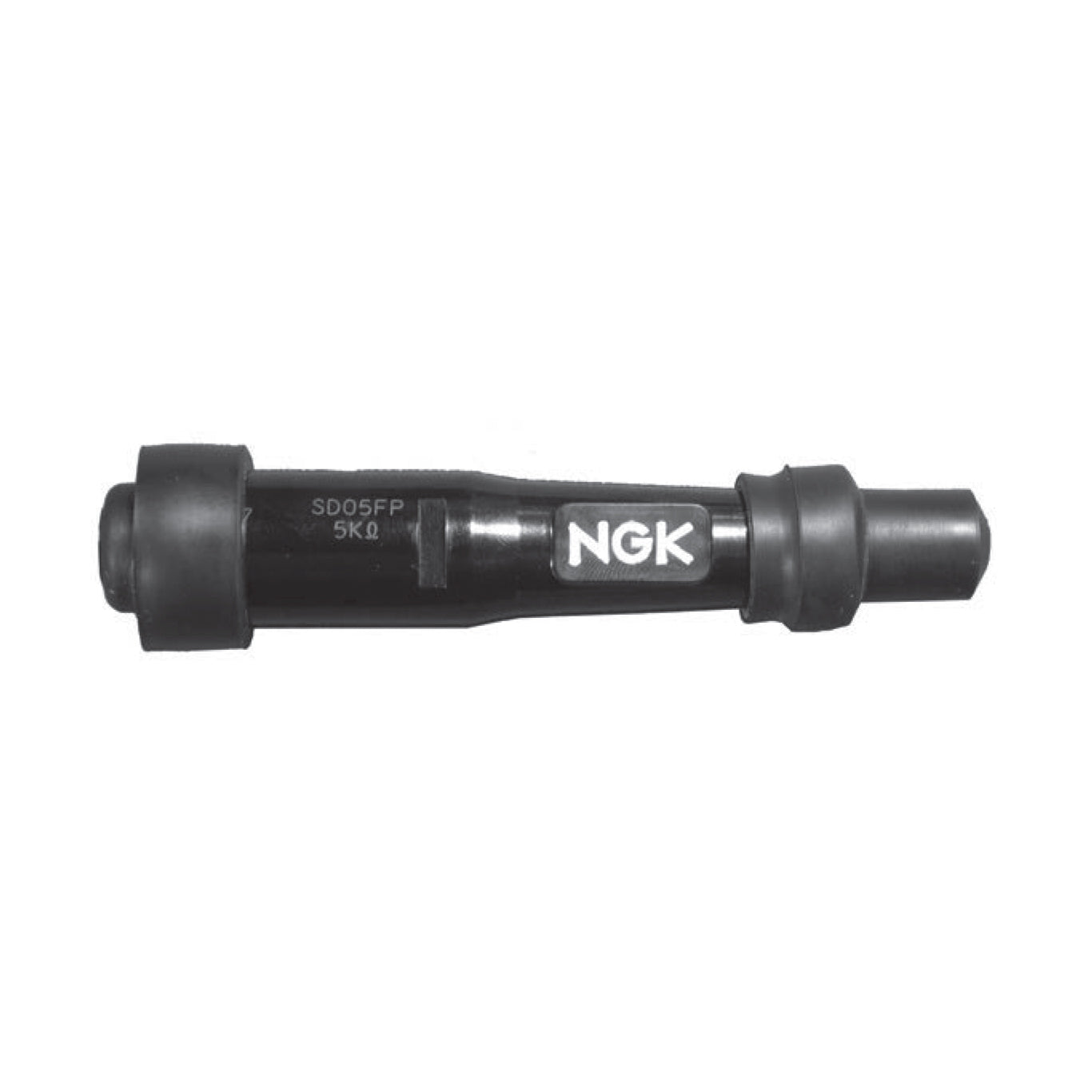

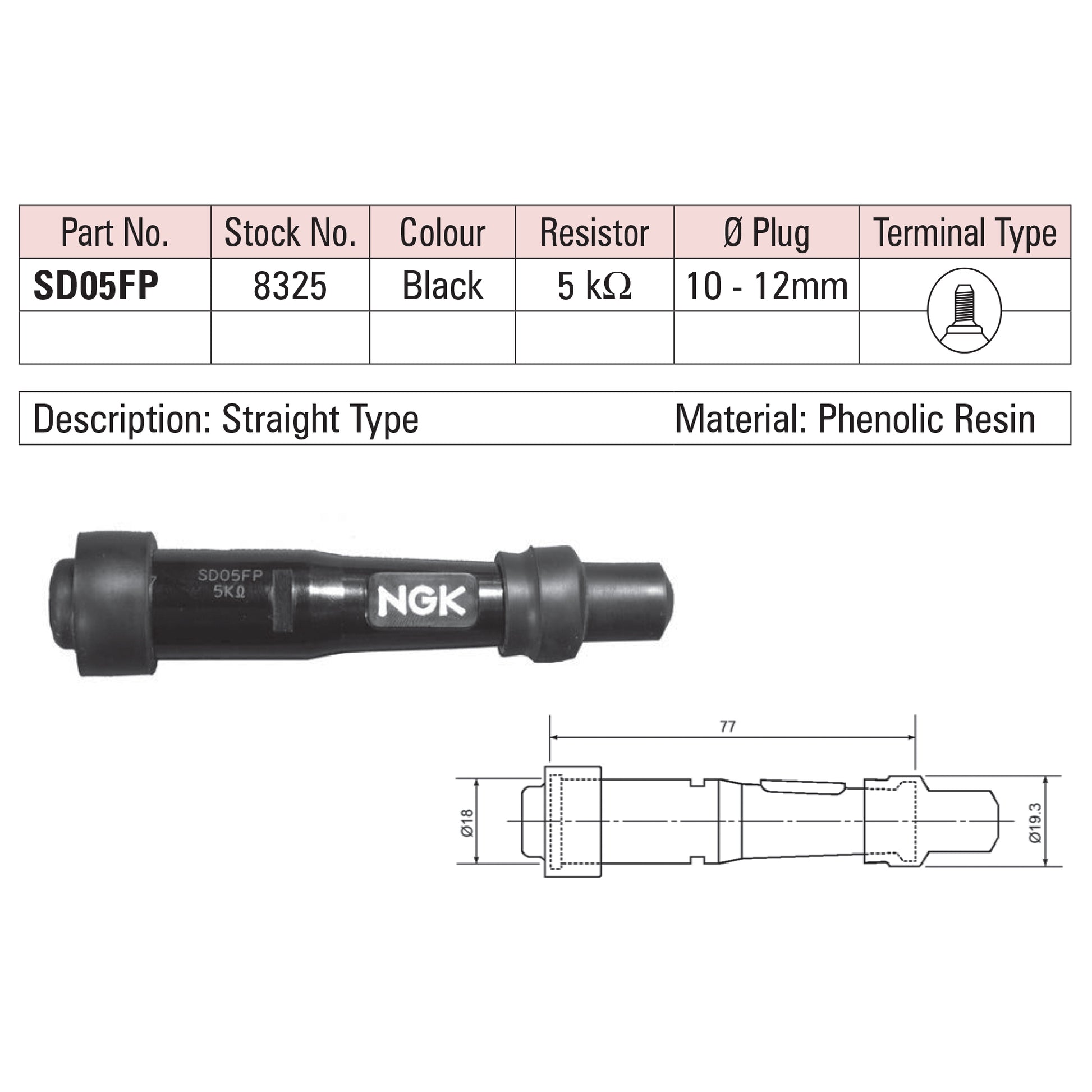

NGK Spark Plug Cap SD05FP (8325) - Black

NGK SD05FP Black Spark Plug Cap

• Fits NGK D series plugs with threaded terminals
• Straight type
• 10-12mm
• 5 kilo ohm
• Terminal stud
• Special waterproof cover

Water resistant, vibration resistant and tough EPDM (Ethylene Propylene Diene Monomer) rubber construction at each end preventing moisture from causing electrical leakage and with a resistor in between the plug terminal and the high-tension lead connection prevents interior shorting and maintains a steady resistance.

The NGK range of resistor covers are designed to give perfect noise suppression across all frequencies whilst engine performance is not adversely affected whatsoever.

Featuring a resistor element pressed in between the plug terminal and the high tension wire connection, the construction is extremely durable, the resistor element is long enough to prevent interior flashover, and steady resistance is maintained. Superlative ceramic materials are incorporated that resist deterioration and have small resistance variation under over-load, whilst the plug connector is made of sturdy phenolic resin, practically oblivious to tremendous heat and high tension, and very rugged rubber material. The heat press insertion makes the construction all the more tough and vibration-resistant. Special rubber liners on both ends prevent moisture from causing electrical leakage.

All motorcycle manufacturers now comply with current legislation which demands a standard of noise suppression on every vehicle. This is achieved usually by fitting NGK resistor covers though in many cases a combination of NGK resistor covers and NGK resistor spark plugs (R type) is necessary to satisfy the ministry tests. It is emphasized that despite the use of both resistor covers and spark plugs in such engines, due to the unique and superior construction of NGK branded products there is no loss of performance or shortening of service life

Fitment Summary
Compatible with 224 models (yearly).

• Cagiva: Canyon 500, W12 350
• Honda: TRX400 A, TRX400 ER, TRX400 EX, TRX400 EX1, TRX400 EX2, TRX400 EX3, TRX400 EX4, TRX400 EX5, TRX400 EX6, TRX400 EX7, TRX400 EX8, TRX400 EX9, TRX400 EXX, TRX400 EXY, TRX400 Fourtrax Rancher, TRX400 FW, TRX400 X, XR250 L, XR250 R, XR250 R-B, XR250 R-C, XR250 R-D, XR250 R-E, XR250 R-F, XR250 R-G, XR250 R-H, XR250 R-J, XR250 R-K, XR250 R-L, XR250 R-M, XR250 R-N, XR250 R-P, XR250 R-R, XR250 R-S, XR250 R-T, XR250 R-V, XR250 R-W, XR250 R-X, XR250 R-Y, XR250 SA, XR250 SZ, XR400 R, XR650 L, XR650 R1, XR650 R2, XR650 R3, XR650 R4, XR650 R5, XR650 R6, XR650 R7, XR650 R8, XR650 R9, XR650 RY, XR650 SM Supermotard
• Husqvarna: SM 610, SM 610 6 bolt front disc, SM 610Ie, SMS 610, TC 570, TC 610, TC 610 Cross, TE 570, TE 610, TE 610 electric start
