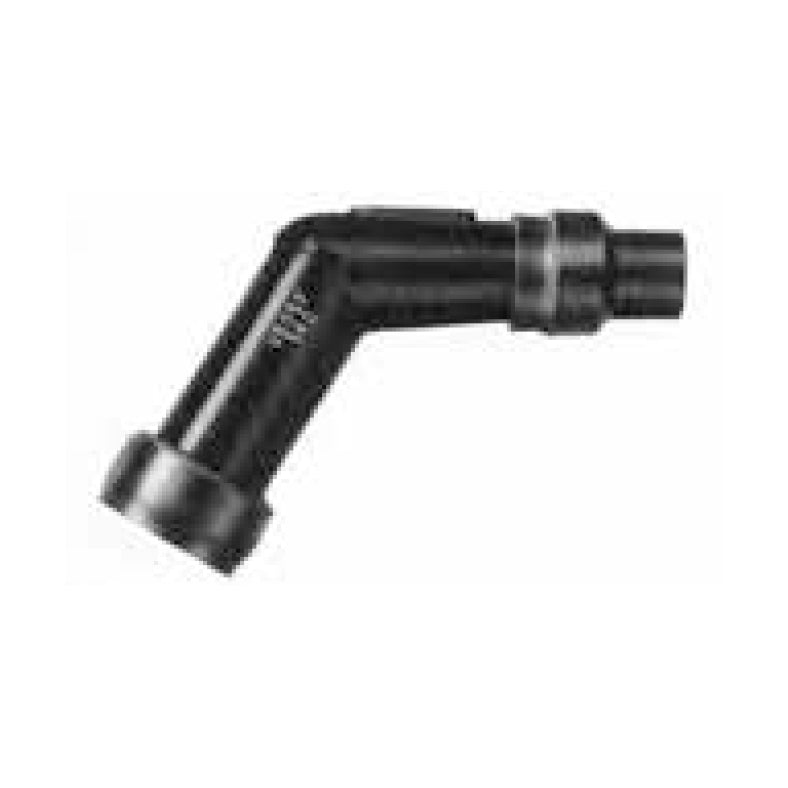

NGK Spark Plug Cap VB05F (8032) - Black

NGK VB05F Black Spark Plug Cap

• Fits NGK B series plugs with threaded terminals
• 120 degree elbow long type
• 14mm
• 5 kilo ohm
• Terminal stud

Water resistant, vibration resistant and tough EPDM (Ethylene Propylene Diene Monomer) rubber construction at each end preventing moisture from causing electrical leakage and with a resistor in between the plug terminal and the high-tension lead connection prevents interior shorting and maintains a steady resistance.

The NGK range of resistor covers are designed to give perfect noise suppression across all frequencies whilst engine performance is not adversely affected whatsoever.

Featuring a resistor element pressed in between the plug terminal and the high tension wire connection, the construction is extremely durable, the resistor element is long enough to prevent interior flashover, and steady resistance is maintained. Superlative ceramic materials are incorporated that resist deterioration and have small resistance variation under over-load, whilst the plug connector is made of sturdy phenolic resin, practically oblivious to tremendous heat and high tension, and very rugged rubber material. The heat press insertion makes the construction all the more tough and vibration-resistant. Special rubber liners on both ends prevent moisture from causing electrical leakage.

All motorcycle manufacturers now comply with current legislation which demands a standard of noise suppression on every vehicle. This is achieved usually by fitting NGK resistor covers though in many cases a combination of NGK resistor covers and NGK resistor spark plugs (R type) is necessary to satisfy the ministry tests. It is emphasized that despite the use of both resistor covers and spark plugs in such engines, due to the unique and superior construction of NGK branded products there is no loss of performance or shortening of service life

Fitment Summary
Compatible with 247 models (yearly).

• Ducati: Darmah 900SD, Pantah 600SL, Pantah 600TL, SII 900, Supersport 600ie, Supersport 600SS, Supersport 900, Supersport 900 Carenata, Supersport 900ie, Supersport 900 Nuda
• Suzuki: GS 1000C, GS 1000E, GS 1000GT, GS 1000GX, GS 1000H, GS 1000L, GS 1000S, GS 550C, GS 550EC, GS 550EN, GS 550ET, GS 550EV, GS 550EX, GS 550EZ, GS 550LD, GS 550LF, GS 550LG, GS 550LT, GS 550LX, GS 550M, GS 550MY, GS 550MZ, GS 750 B DB, GS 750 C DC EC, GS 750 EN DN, GS 750ESD, GS 750LN, GS 750LT, GS 750LX, GS 850GE, GS 850GF, GS 850GG, GS 850GH, GS 850GN, GS 850GT, GS 850GX, GS 850GZ, GSX 1000SZ, GSX 650 F FA, GSX 750 EE ESD ESE EFE, GSX 750 EE ESD ESE EFE Katana, GSX 750ET, GSX 750EX, GSX 750FK, GSX 750FL, GSX 750FM, GSX 750FN, GSX 750FP, GSX 750FR, GSX 750FS, GSX 750FT, GSX 750 LT LX ET EX EZ SZ, GSX 750S, GSX 750S2, GSX 750S2C, GSX 750S3, GSX 750S4, GSX 750SE, GSX 750SS, GSX 750 W Retro, GV 1400 Cavalcade, VL 1500 Boulevard C90T, VL 1500 C1500 T Intruder, VL 1500 Intruder Boulevard C90, VL 1500 Intruder LC, VX 800L, VX 800M, VX 800N, VX 800P, VX 800R, VX 800S, VX 800T, VX 800V, VZ 1500 Intruder Boulevard M90
• Yamaha: BT 1100P, BT 1100R, BT 1100S, BT 1100T, BT 1100V, SR 400 3HT1, SR 400 BC-RH01J, SR 400 E EC, SR 400 F FC, SR 400 G GC, SR 400 H HC, SR 500 Classic, XVS 1100A
