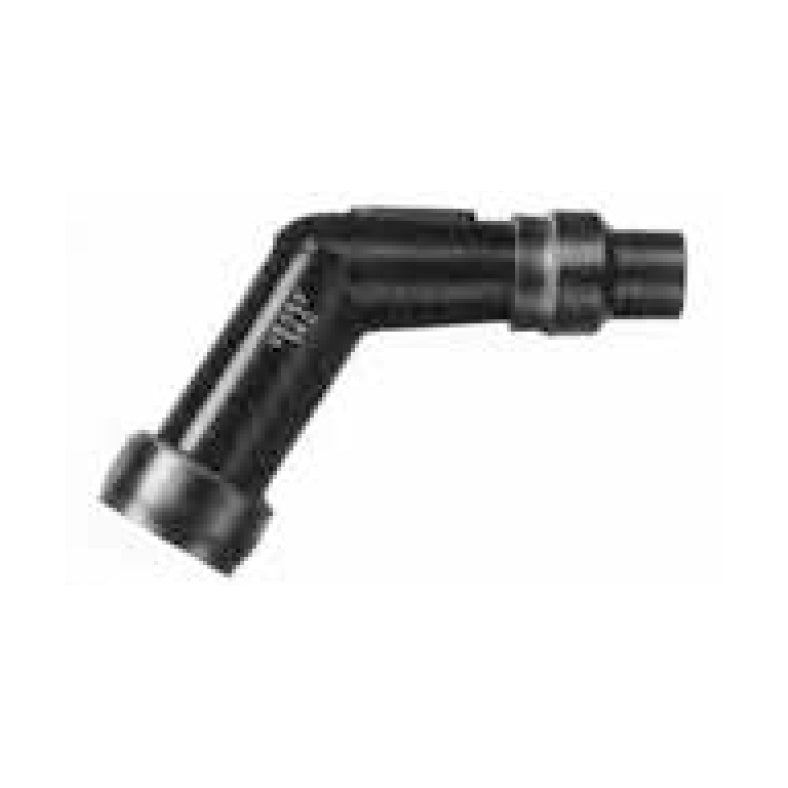

NGK Spark Plug Cap VD05F (8052) - Black

NGK VD05F Black Spark Plug Cap 30700-MEW-922

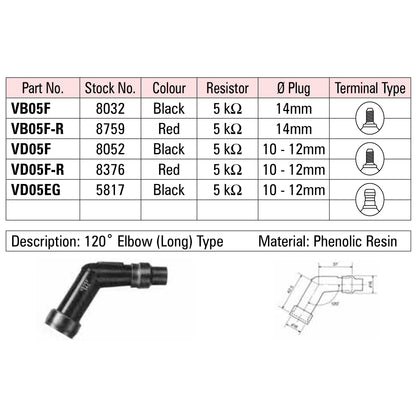

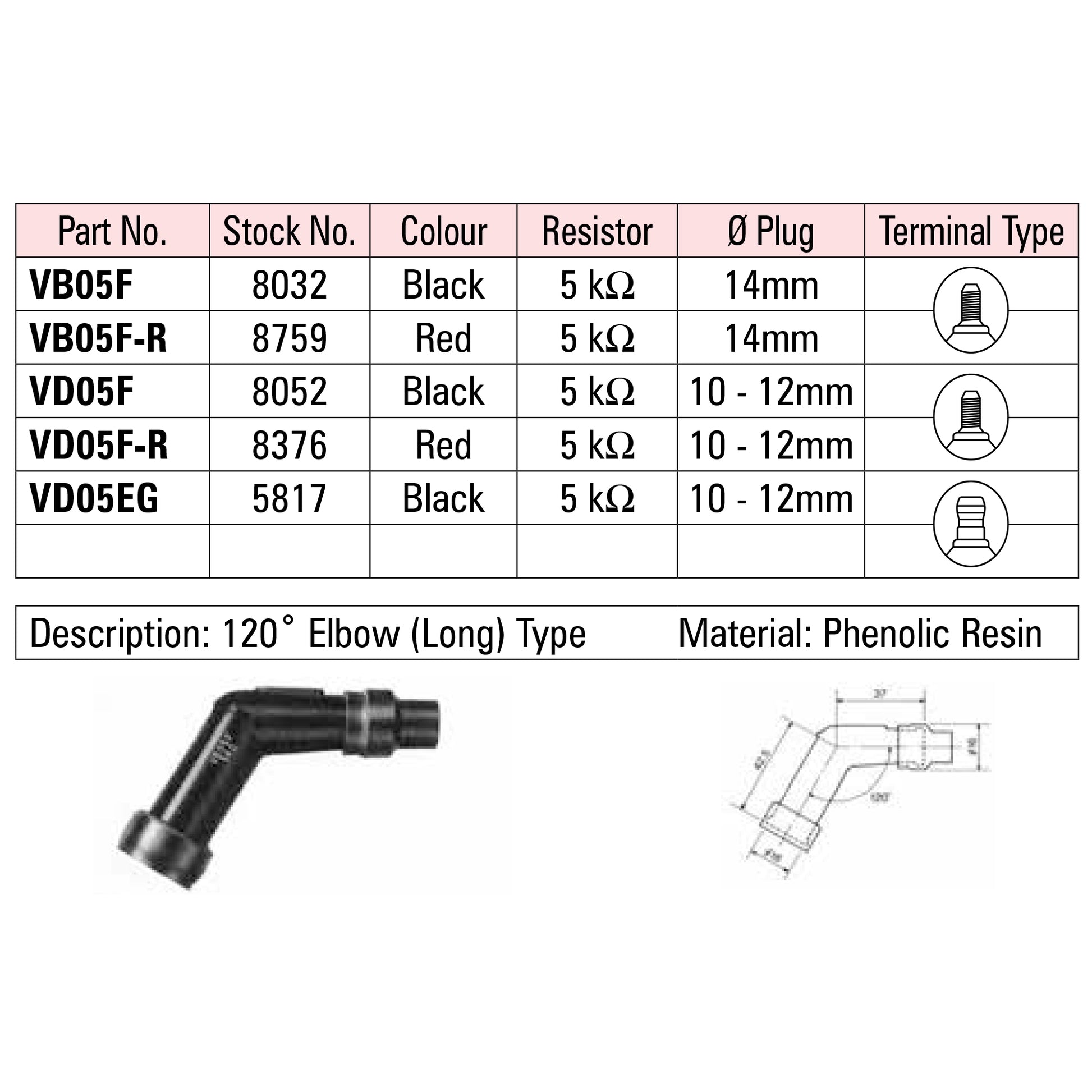

• VD05F-B (8052)
• Fits NGK D series plugs with threaded terminals
• 120 degree elbow long type
• 10-12mm
• 5 kilo ohm
• Terminal stud
• Red version: use our SKU: 005226

Please Note: NGK CPR8EA-9 plugs will only fit these caps if you use existing terminal studs

Water resistant, vibration resistant and tough EPDM (Ethylene Propylene Diene Monomer) rubber construction at each end preventing moisture from causing electrical leakage and with a resistor in between the plug terminal and the high-tension lead connection prevents interior shorting and maintains a steady resistance.

The NGK range of resistor covers are designed to give perfect noise suppression across all frequencies whilst engine performance is not adversely affected whatsoever.

Featuring a resistor element pressed in between the plug terminal and the high tension wire connection, the construction is extremely durable, the resistor element is long enough to prevent interior flashover, and steady resistance is maintained. Superlative ceramic materials are incorporated that resist deterioration and have small resistance variation under over-load, whilst the plug connector is made of sturdy phenolic resin, practically oblivious to tremendous heat and high tension, and very rugged rubber material. The heat press insertion makes the construction all the more tough and vibration-resistant. Special rubber liners on both ends prevent moisture from causing electrical leakage.

All motorcycle manufacturers now comply with current legislation which demands a standard of noise suppression on every vehicle. This is achieved usually by fitting NGK resistor covers though in many cases a combination of NGK resistor covers and NGK resistor spark plugs (R type) is necessary to satisfy the ministry tests. It is emphasized that despite the use of both resistor covers and spark plugs in such engines, due to the unique and superior construction of NGK branded products there is no loss of performance or shortening of service life

Fitment Summary
Compatible with 660 models (yearly).

• Honda: ATC110 , ATC125 , ATC125 M, ATC185 SA, ATC185 SC, ATC185 SD, ATC185 SE, ATC200 Drum, ATC200 X, ATC250 R, ATC250 SX ES, ATC350 X, ATC70 , ATC90 , CB750 A, CB750 F, CB750 F1, CB750 F2, CB750 FZ, CB750 K0, CB750 K1, CB750 K2, CB750 K3, CB750 K4, CB750 K5, CB750 K6, CB750 K7, CB750 KZ, CBR125 RA, CBR125 RB, CBR125 RC, CBR125 RD, CBR125 RE, CBR125 RF, CBR125 RG, CBR125 RH, CBR125 RS4, CBR125 RS5, CBR125 RS6, CBR125 RS7, CBR125 RS8, CBR125 RS9, PES150 i, PES150 i6, PES150 i7, PES150 i8, PES150 i9, PS/PES125 i, PS/PES125 i8, PS/PES125 i9, SH125 / 1, SH125 / 2, SH125 / 3, SH125 / 4, SH125 / 5, SH125 / 6, SH125 / 7, SH125 / 8, SH150 / 1, SH150 / 2, SH150 / 3, SH150 / 4, SH150 / 5, SH150 i6, SH150 i7, SH150 i8, TRX200 4WD, TRX200 D, TRX200 DM, TRX200 DN, TRX200 L, TRX200 M, TRX250 A, TRX250 AC, TRX250 EX1, TRX250 EX2, TRX250 EX3, TRX250 EX4, TRX250 EX5, TRX250 EX6, TRX250 EX7, TRX250 EX8, TRX250 Fourtrax Recon, TRX250 RA, TRX250 TE TM, TRX250 TE2 TM2, TRX250 X, TRX250 X9, TRX250 XA, TRX300 A, TRX300 AC, TRX300 AN, TRX300 EX, TRX300 EX1, TRX300 EX2, TRX300 EX3, TRX300 EX4, TRX300 EX5, TRX300 EX6, TRX300 EX7, TRX300 EX8, TRX300 EX9, TRX300 EXP, TRX300 EXR, TRX300 EXS, TRX300 EXT, TRX300 EXV, TRX300 EXW, TRX300 EXX, TRX300 EXY, TRX300 FWD, TRX300 XA, TRX350 A, TRX350 DA, TRX350 FE, TRX350 FM, TRX350 Fourtrax Rancher, TRX350 G5, TRX350 H, TRX350 J, TRX350 K, TRX350 L, TRX350 M, TRX350 N, XL185 S, XL500 R, XL500 S, XL600 L, XL600 LD, XL600 LE, XL600 LM-F, XL600 LM-G, XL600 LM-H, XL600 RD, XL600 RE, XL600 RF, XL600 RM, XL600 V, XL700 V, XL700 V7, XL700 V8, XL700 V9, XL700 VA, XL700 VB, XL700 VC, XL700 VD
• KTM: EXC 400 Enduro, EXC 520 Racing
• Kymco: Calypso 50
• Piaggio: Sfera 1254T
• Yamaha: XT 125R, XT 125X, YBR 125 Custom, YBR 125E, YBR 125ED, YBR 125EGS, YBR 125EK, YBR 125ESD, YBR 125Fi
• Suzuki: AN 125S, AN 125T, AN 125V, AN 125W, AN 125X, CS 125D, DR 125SF, DR 125SH, DR 125SJ, DR 125SK, DR 125SL, DR 125SP, DR 125ST, DR 200G, DR 200H, DR 200J, DR 200K, DR 200L, DR 200M, DR 200N, DR 200SE, DR 250R, DR 250RY, DR 250 SEP SER SES, DR 250 SZ SE SF SG, DR 350 SE-R, DR 350 SE-S, DR 350 SE-T, DR 350 SE-V, DR 350 SE-W, DR 350 SE-X, DR 350SL, DR 350SM, DR 350SN, DR 350SP, DR 650 Djebel, DR 650R, DR 650RE, DR 650RS, DR 650RSE, DR 650SE, DR 800S, DR 800Z, EN 125 Cast Wheel, EN 125 Spoke wheels, GS 500E, GS 500EK, GS 500EL, GS 500EM, GS 500EN, GS 500EP, GS 500ER, GS 500ES, GS 500ET, GS 500EV, GS 500EW, GS 500EX, GS 500EY, GS 500EZ, GS 500F, GS 650 EZ X EX, GS 650GTD, GS 650 GTX GTZ, GS 650GX, GS 650GZ, LT 500R, LTA 500 F Quadmaster, LTA 500 F Vinson, LTA 500 Xi KingQuad, LTF 500F, UH 125 Burgman, XF 650 Freewind
