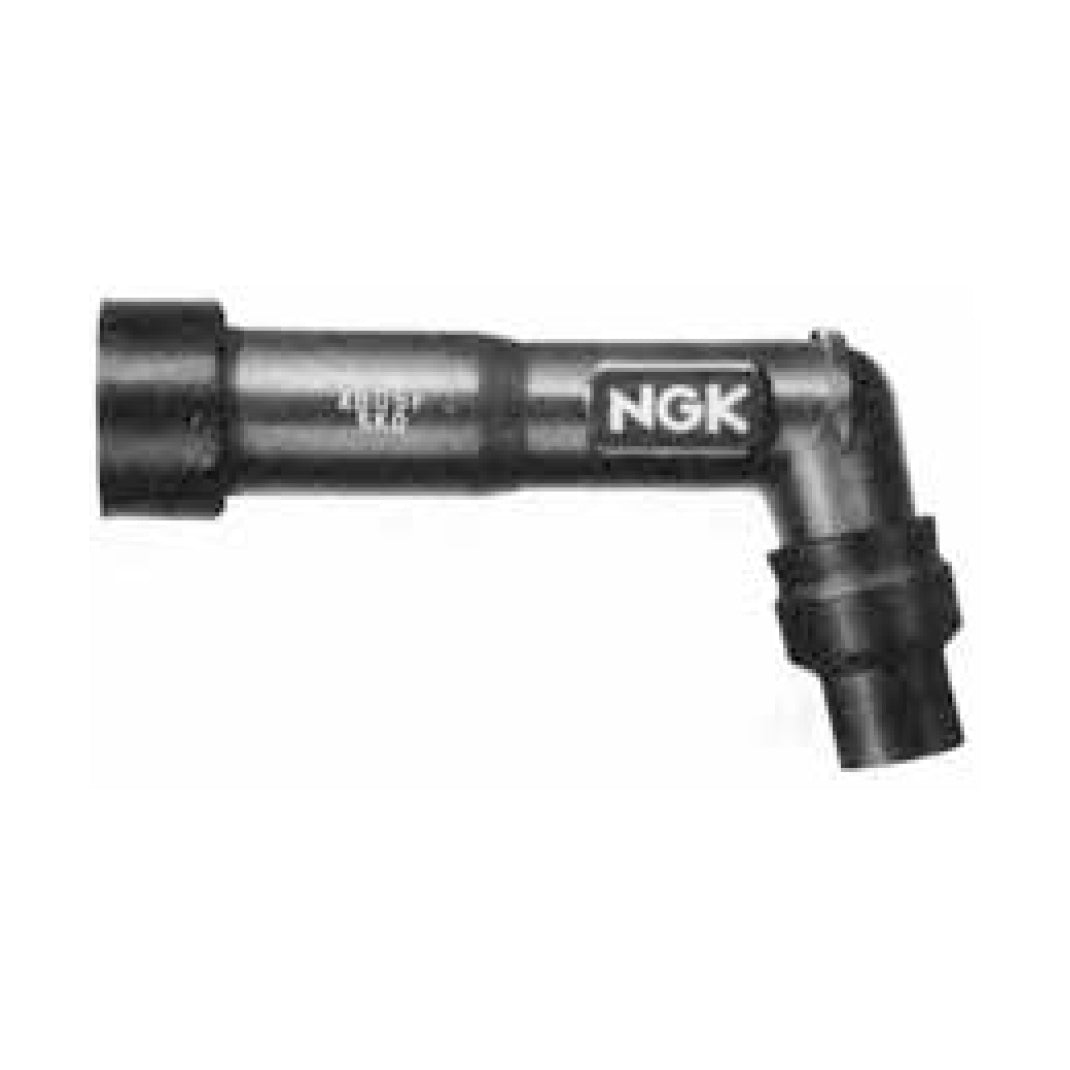

NGK Spark Plug Cap XD05F (8072) - Black

NGK XD05F Black Spark Plug Cap

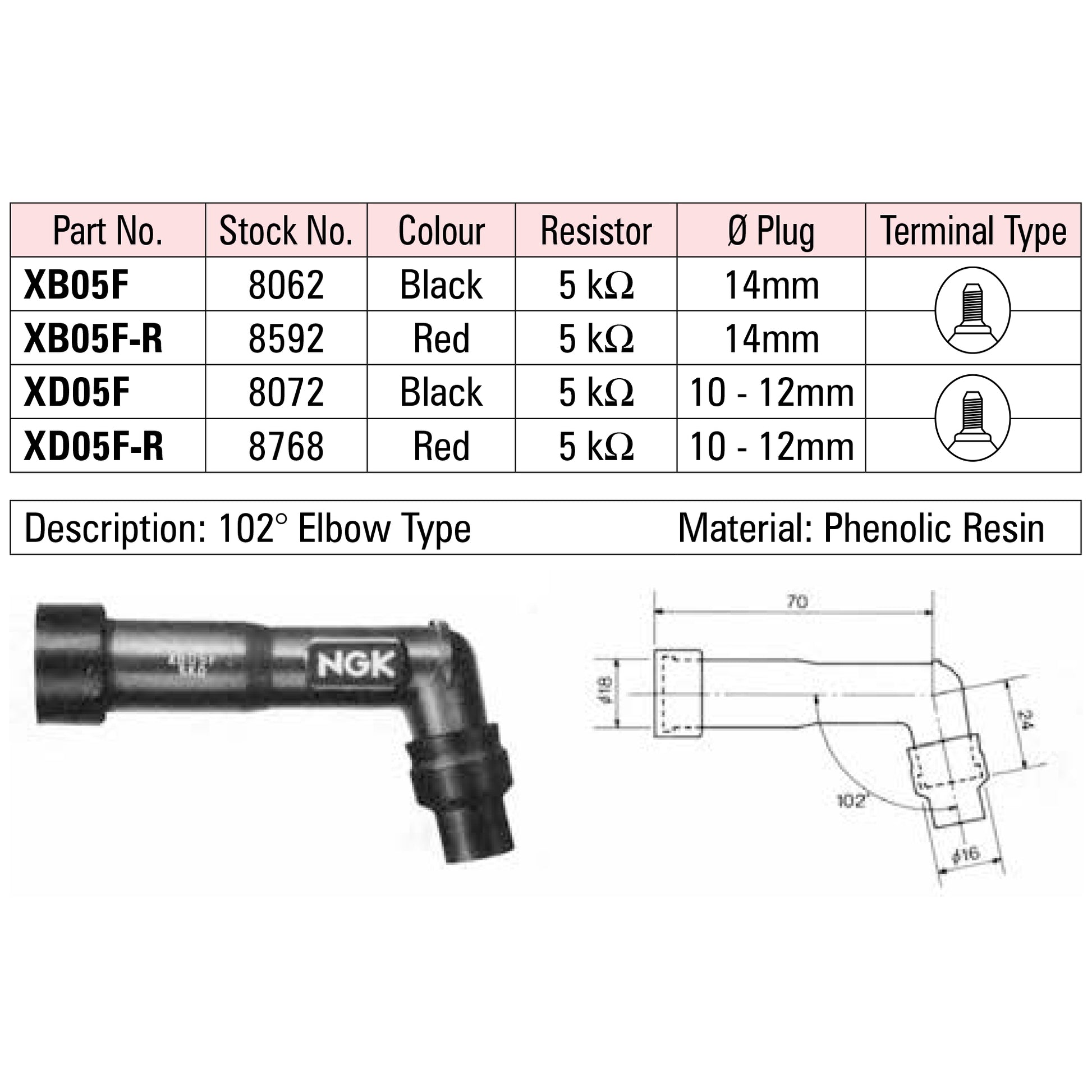

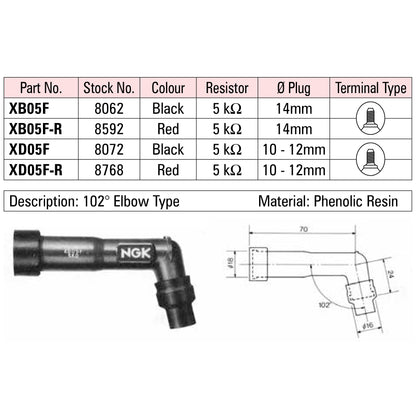

• Fits NGK D series plugs with threaded terminals
• 102 degree elbow
• 10-12mm
• 5 kilo ohm
• 70mm from end to elbow
• Terminal stud

Water resistant, vibration resistant and tough EPDM (Ethylene Propylene Diene Monomer) rubber construction at each end preventing moisture from causing electrical leakage and with a resistor in between the plug terminal and the high-tension lead connection prevents interior shorting and maintains a steady resistance.

The NGK range of resistor covers are designed to give perfect noise suppression across all frequencies whilst engine performance is not adversely affected whatsoever.

Featuring a resistor element pressed in between the plug terminal and the high tension wire connection, the construction is extremely durable, the resistor element is long enough to prevent interior flashover, and steady resistance is maintained. Superlative ceramic materials are incorporated that resist deterioration and have small resistance variation under over-load, whilst the plug connector is made of sturdy phenolic resin, practically oblivious to tremendous heat and high tension, and very rugged rubber material. The heat press insertion makes the construction all the more tough and vibration-resistant. Special rubber liners on both ends prevent moisture from causing electrical leakage.

All motorcycle manufacturers now comply with current legislation which demands a standard of noise suppression on every vehicle. This is achieved usually by fitting NGK resistor covers though in many cases a combination of NGK resistor covers and NGK resistor spark plugs (R type) is necessary to satisfy the ministry tests. It is emphasized that despite the use of both resistor covers and spark plugs in such engines, due to the unique and superior construction of NGK branded products there is no loss of performance or shortening of service life

Fitment Summary
Compatible with 746 models (yearly).

• Suzuki: AN 250 Burgman, AN 250 Burgman Skywave, DR 250R, DR 250RY, DR 250 SEP SER SES, DR 250 SZ SE SF SG, DR 600 Dakar, DR 600 Djebel, DR 600L, DR 600M, DR 600N, DR 600P, DR 600R, DR 600S, DR 600SF, DR 600SG, DR 600SH, DR 600T, DR 600V, DR 650 Djebel, DR 650R, DR 650RE, DR 650RS, DR 650RSE, DR 650SE, DR 650 SE M0, DR 650 SE M1, DR 650 SE M2, DR 650 SE M3, DR 650 SE M4, GN 250F, GN 250G, GN 250H, GN 250J, GN 250K, GN 250L, GN 250M, GN 250R, GN 250T, GN 400D, GN 400LX, GN 400TT, GS 250L, GS 250TT, GS 250TW, GS 250TX, GS 650 EZ X EX, GS 650GTD, GS 650 GTX GTZ, GS 650GX, GS 650GZ, GSX 550 EE ES EF EFE ESG, GSX 750 EE ESD ESE EFE, GSX 750 EE ESD ESE EFE Katana
• Honda: CB1000 F, CB1000 R, CB1000 R7 RA7, CB1000 R8 RA8, CB1000 R9 RA9, CB1000 RA, CB1000 RA RAA, CB1000 RB RAB, CB1000 RC RAC, CB1000 RD RAD, CB1000 RE RAE, CB1000 RF RAF, CB1000 RG RAG, CB1000 Super 4 SC30, CB1100 AD, CB1100 AE, CB1100 AF, CB1100 AG, CB1100 EX, CB1100 F, CB1100 RB2, CB1100 RC2, CB1100 RD2, CB1100 RS, CB1100 SA, CB1100 SF1, CB1100 SF2, CB1100 SF3, CB1100 SFY, CB250 / 1, CB250 / 2, CB250 / 3, CB250 / 4, CB250 / 5, CB250 F1, CB250 F2, CB250 F3, CB250 F4, CB250 F5, CB250 F6, CB250 F7, CB250 FM, CB250 FN, CB250 FP, CB250 FR, CB250 FS, CB250 FT, CB250 FV, CB250 FW, CB250 FX, CB250 FY, CB250 G5, CB250 K, CB250 K0, CB250 K1, CB250 K2, CB250 K3, CB250 M, CB250 N, CB250 NA, CB250 NB NDB, CB250 NDC, CB250 Nighthawk, CB250 P, CB250 R, CB250 R (ABS) Neo Sport Cafe, CB250 RS, CB250 RSA, CB250 RSD, CB250 S, CB250 T, CB250 V, CB250 W, CB250 Y, CB400 A, CB400 F, CB400 NA, CB400 NB, CB400 NC, CB400 SF, CB400 SFA, CB400 T, CB500 F, CB500 FAD, CB500 FAE, CB500 FAF, CB500 FAG, CB500 FAH, CB500 FAJ, CB500 FAK, CB500 FAL, CB500 FAM, CB500 FAN, CB500 FAP, CB500 FAR, CB500 FAS, CB500 K0, CB500 K1, CB500 K2, CB500 K3, CB500 K4, CB500 K5, CB500 K6, CB500 K7, CB500 R, CB500 SY, CB500 SY1, CB500 SY2, CB500 T, CB500 V, CB500 W SW, CB500 X, CB500 X SX, CB500 XAM, CB500 XAN, CB500 XAP, CB500 XAR, CB550 F1, CB550 F2, CB550 F3, CB550 F4, CB550 F5, CB550 F6, CB550 K0, CB550 K2, CB550 K3, CB550 K4, CB550 K5, CB550 SC, CB650 A, CB650 B, CB650 C, CB650 CA, CB650 FAE, CB650 FAF, CB650 FAG, CB650 FAH, CB650 FAJ, CB650 LC, CB650 R, CB650 SC, CB650 Z, CB750 A, CB750 C, CB750 F, CB750 F1, CB750 F2, CB750 F2C, CB750 F2D, CB750 FA, CB750 FB, CB750 FC, CB750 FD, CB750 FZ, CB750 Hornet, CB750 K0, CB750 K1, CB750 K2, CB750 K3, CB750 K4, CB750 K5, CB750 K6, CB750 K7, CB750 KZ, CB750 S-C, CB750 SC, CB900 C, CB900 CA, CB900 F2, CB900 F3, CB900 F4, CB900 F5, CB900 F6, CB900 F7, CB900 FA, CB900 FB F2B, CB900 FC F2C, CB900 FD F2D, CB900 FZ, CBF500 A4, CBF500 A5, CBF500 A6, CBF500 A7, CBF500 A8, CBF500 A9, CBF500 PC39, CBF500 R-P, CD250 UJ, FT400 Ascot, FT500 C, GL1100 A, GL1100 B, GL1100 C, GL1100 D, GL1200 D, GL1200 DE, GL1200 DF, GL1200 DG, GL1200 DH
• Kawasaki: EN 450A1, EN 450A2, EN 450A3, EN 450A4, EN 450A5, EN 450A6, GPX 600R, GPZ 400R, GPZ 400S, GPZ 500R, GPZ 500S, GPZ 600R, KSF 250 Mojave, VN 1500 Classic FL Caliper, VN 1500 Classic FR Caliper, VN 1500 Classic Tourer FL Caliper, VN 1500 Classic Tourer FR Caliper, VN 1500 Drifter FL Caliper, VN 1500 Drifter FR Caliper, VN 1500 Mean Streak VNT50P, VN 1500 N Classic, VN 1500 Nomad FL Caliper, VN 1500 Nomad FR Caliper, VN 1500 Vulcan, VN 1500 Vulcan Classic Fi FL Caliper, VN 1500 Vulcan Classic Fi FR Caliper, VN 1500 Vulcan Classic FL Caliper, VN 1500 Vulcan Classic FR Caliper, VN 1500 Vulcan FL Caliper, VN 1500 Vulcan FR Caliper, VN 1600 Classic FL Caliper, VN 1600 Classic FR Caliper, VN 1600 Mean Streak VNT60B, VN 1600 Nomad Classic Tourer FL Caliper, VN 1600 Nomad Classic Tourer FR Caliper, VN 800A1, VN 800A10, VN 800A11, VN 800A2, VN 800A3, VN 800A4, VN 800A5, VN 800A6, VN 800A7, VN 800A8, VN 800A9, VN 800 B Classic, VN 800 Drifter
