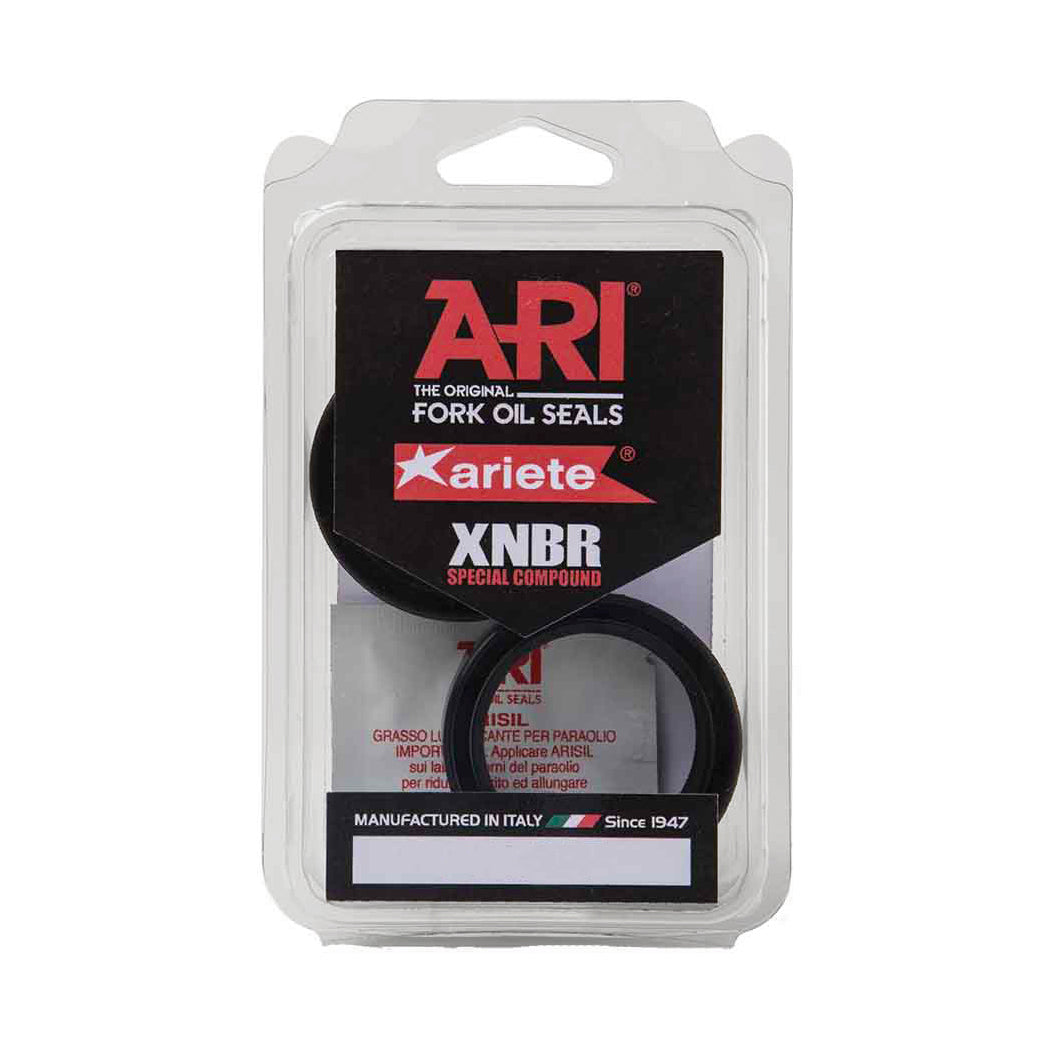

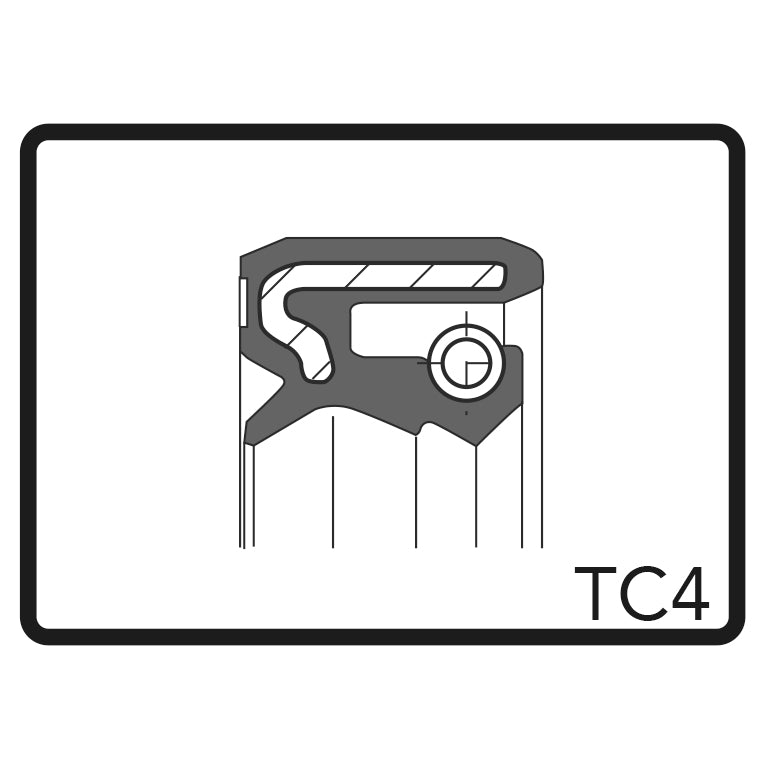

ARI.021 - Pair Of Fork Oil Seals 38 x 50 x 10.5 TC4

ARI.021 Fork Seals. Uses a graphite-rich compound with resistance to abrasion, to high temperatures, and more complex lubricants with numerous additives

---

ARI- THE ORIGINAL FORK OIL SEALS, custom-made for your fork

Ariete fork oil seals are different! The quality of their execution is matched by the unique nature of the material used: the carboxylated elastomer known as XNBR.

This compound offers unique characteristics of resistance to abrasion, to high temperatures, and to the complex lubricants with numerous additives, which are used in modern forks as fitted to motorcycles and scooters.

The reciprocating action of the fork tube against the seal subjects it to a notable degree of abrasion, which is complicated by the heat generated as a result of hydraulic displacement within the fork, plus the friction of the components involved. This mechanical wear and tear leads to accelerated ageing of the rubber which is also obliged to deal with the chemical action of the various additives in the lubricant.

Oil seals are normally made from a nitrile rubber, known as NBR. This is used because it is cheap, and plentiful, not because NBR is the best material for the job.

Ariete technical staff have accumulated 70 years of experience in the rubber industry, and have spent many years looking for a better material for the manufacture of oil seals.

Although the cost of XNBR is almost twice that of NBR, the sophisticated technology used to make Ariete oil seals enables them to be put on the market at highly competitive prices. In this way, the Ariete Customer enjoys the benefits of a very high quality product, which satisfies the most demanding requirements, at a competitive price.

ARISIL special oil seal lubricant ARI fork oil seals are made from a rubber compound specifically developed to work with the lubricants used in front forks, with all their various additives. This compound is completely different from that normally used for rotating shaft seals, since the physical environment inside a fork with its reciprocating movement, and the specialist lubricants, are completely different. Ariete have designed ARI oil seals with a variety of lip profiles to make them longer lasting, while reducing to a minimum the friction effect against the moving shaft. Over the years, Ariete have discovered the key role of a separating lubricant between the fork tube and the rubber of the oil seal to reduce to a minimum the surface friction, without affecting the function of the oil seal. After exhaustive testing, Ariete have chosen a lubricant which is produced in the USA, and devised specifically as a rubber/metal lubricant for mechanical components used in the NASA space program. The advantage of this special grease, which they call ARISIL, is that it extends the life of the oil seal, and helps it retain its vital characteristics of flexibility and chemical resistance. For this reason, every set of ARI FORK OIL SEALS contains a single dose sachet of ARISIL, sufficient to lubricate the two oil seals supplied.

Manufacturer Part No. (MPN): ARI.021
Barcode: 8051513535468

Height:	11
Inside Diameter:	38
Outer Dia:	50
Type:	DR3

Fitment Summary
Compatible with 295 models (yearly).

• Aprilia: AF1 125 Replica, AF1 125 Sintesi, AF1 125 Sport, AF1 125 Sport Pro, AF1 125 Super Sport, ETX 50, ETX 50AE, Pegaso 125, Tuareg 125 Tuareg Wind, Tuareg 125 Tuareg Wind AE
• Cagiva: Low Rider 125, Mito 125 II 2T, Mito 125 Sport, W8 125 Trail, WMX 125, WRX 125, WRX 1251
• Ducati: Darmah 900SD, Mille 1000 Hailwood Replica, Mille 1000S2, Mille 1000 S2 Hailwood Replica, SII 900, SS 900, SS 900MHR, SS 900 MHR II, Supersport 900 Carenata, Supersport 900 Nuda
• Gilera: XR2 125AE
• Honda: CR125 RB, CR125 RC, CR125 RD, CR125 RE, CR125 RF, CR125 RG, CR125 RH, XR250 R-E, XR250 R-F
• Kawasaki: BJ 250A, BJ 250C1, BJ 250C2, EL 250 Chopper, KDX 200A, KDX 200A B, KDX 250B1, KDX 250B2, KDX 250B3, KDX 250B4, KDX 250C1, KDX 250C2, KDX 250C3, KDX 400, KDX 420A1, KDX 450A1, KL 650 Tengai, KLR 600A1, KLR 600B, KLR 600B1, KLR 600B10, KLR 600B2, KLR 600B3, KLR 600B4, KLR 600B5, KLR 600B6, KLR 600B7, KLR 600B8, KLR 600B9, KLR 650A10, KLR 650A11, KLR 650A3, KLR 650A4, KLR 650A5, KLR 650A6, KLR 650A7, KLR 650A8, KLR 650A9, KLR 650B2, KLR 650B3, KLR 650B4, KLR 650C1, KLR 650C2, KLR 650C3, KMX 200A, KX 125A6, KX 125A7, KX 420A1, KX 420A2, KX 80L1, KX 80L2, KX 80L3, KX 80R1, KX 80R2, KX 80R3, KX 80R4, KX 80R5, KX 80R6, KX 80R7, KX 80R8, KX 80R9, KX 80W3
• Loncin: DM 150
• Moto Guzzi: California 850T5, Nevada 350, Nevada 750, Nevada 750 Club, SP 1000II, V35 350TT, V65 650TT, V75 750, V75 750 Strada, V75 750 Targa, VT 650TT
• Moto Morini: Camel 50, Camel 500
• Suzuki: PE 175T, PE 175X, PE 175Z, RM 125C, RM 125D, RM 250C, RM 250N, RM 250T, RM 250X, RM 250Z, RM 400N, RM 400T, TS 250X
• Yamaha: FZX 700 Fazer, IT 175J, IT 175K, IT 250H, IT 250J, IT 400C, IT 400D, IT 400E, IT 400F, IT 465H, IT 465J, TDR 2503CL, XT 550J, XT 550K, XT 550L, YZ 125H, YZ 125J, YZ 125K, YZ 250D, YZ 250E, YZ 250F, YZ 250G, YZ 465D, YZ 465E, YZ 465F, YZ 465G
