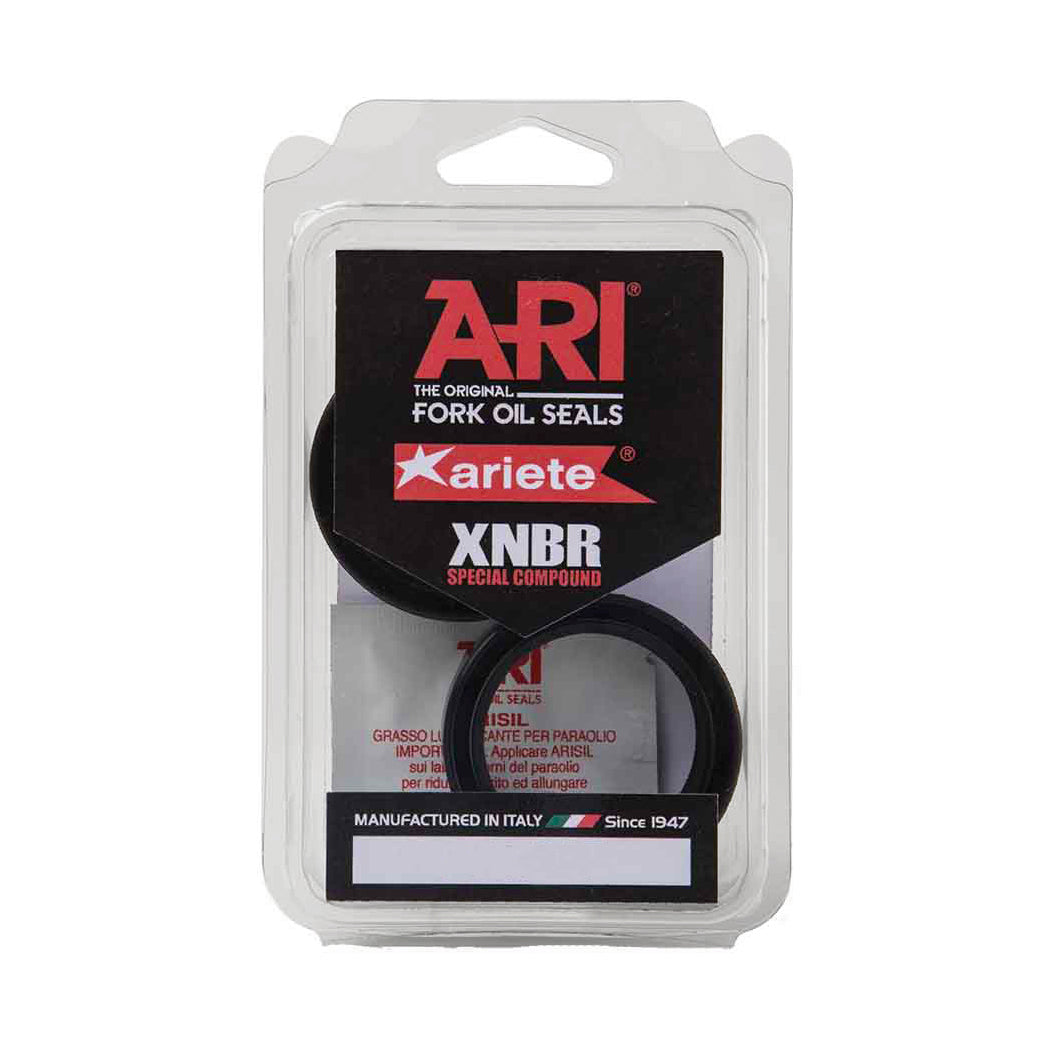

ARI.016 - Pair Of Fork Oil Seals 30 x 42 x 10.5 TB4

ARI.016 Fork Seals. Uses a graphite-rich compound with resistance to abrasion, to high temperatures, and more complex lubricants with numerous additives

---

ARI- THE ORIGINAL FORK OIL SEALS, custom-made for your fork

Ariete fork oil seals are different! The quality of their execution is matched by the unique nature of the material used: the carboxylated elastomer known as XNBR.

This compound offers unique characteristics of resistance to abrasion, to high temperatures, and to the complex lubricants with numerous additives, which are used in modern forks as fitted to motorcycles and scooters.

The reciprocating action of the fork tube against the seal subjects it to a notable degree of abrasion, which is complicated by the heat generated as a result of hydraulic displacement within the fork, plus the friction of the components involved. This mechanical wear and tear leads to accelerated ageing of the rubber which is also obliged to deal with the chemical action of the various additives in the lubricant.

Oil seals are normally made from a nitrile rubber, known as NBR. This is used because it is cheap, and plentiful, not because NBR is the best material for the job.

Ariete technical staff have accumulated 70 years of experience in the rubber industry, and have spent many years looking for a better material for the manufacture of oil seals.

Although the cost of XNBR is almost twice that of NBR, the sophisticated technology used to make Ariete oil seals enables them to be put on the market at highly competitive prices. In this way, the Ariete Customer enjoys the benefits of a very high quality product, which satisfies the most demanding requirements, at a competitive price.

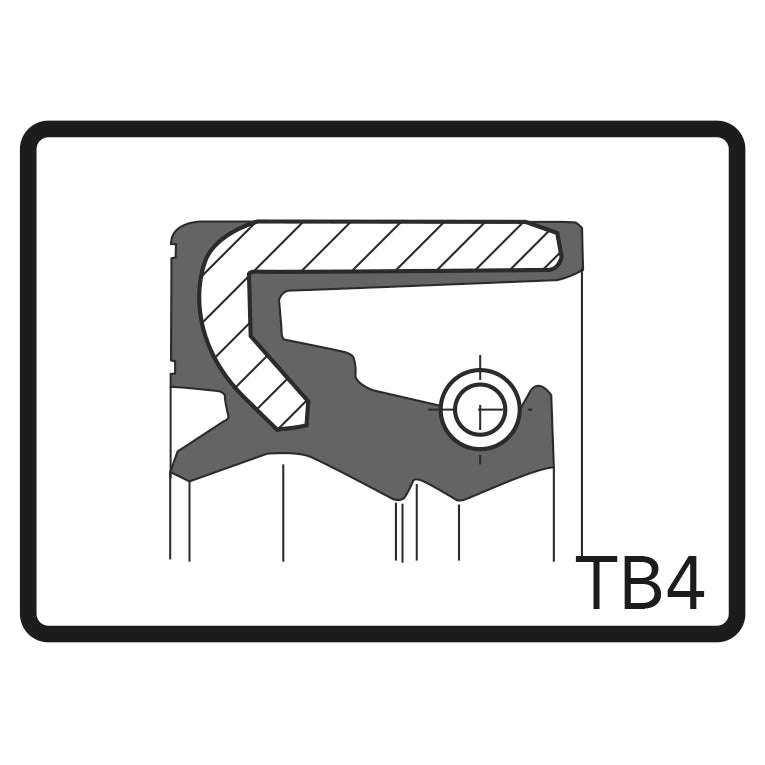

ARISIL special oil seal lubricant ARI fork oil seals are made from a rubber compound specifically developed to work with the lubricants used in front forks, with all their various additives. This compound is completely different from that normally used for rotating shaft seals, since the physical environment inside a fork with its reciprocating movement, and the specialist lubricants, are completely different. Ariete have designed ARI oil seals with a variety of lip profiles to make them longer lasting, while reducing to a minimum the friction effect against the moving shaft. Over the years, Ariete have discovered the key role of a separating lubricant between the fork tube and the rubber of the oil seal to reduce to a minimum the surface friction, without affecting the function of the oil seal. After exhaustive testing, Ariete have chosen a lubricant which is produced in the USA, and devised specifically as a rubber/metal lubricant for mechanical components used in the NASA space program. The advantage of this special grease, which they call ARISIL, is that it extends the life of the oil seal, and helps it retain its vital characteristics of flexibility and chemical resistance. For this reason, every set of ARI FORK OIL SEALS contains a single dose sachet of ARISIL, sufficient to lubricate the two oil seals supplied.

Manufacturer Part No. (MPN): ARI.016
Barcode: 8051513535437

Height:	11
Inside Diameter:	30
Outer Dia:	42
Type:	DR3

Fitment Summary
Compatible with 444 models (yearly).

• Aprilia: SR 50AC, SR 50H2O, SR 50 H2O ie, SR 50LC, SR 50R, SR 50 R LC
• Baotian: BT12512C1 125 Warrior Rebel, BT125T12D1 125 Hero, BT125T12E1 125 Rocky, BT125T2A 125 Smart Rider, BT125T2B2 125, BT125T3A2 125 Citibike, BT125T3A4 125 Citibike, BT125T3A6 125 Citibike, BT125T3B6 125, BT125T7 125 Big Panther, BT125T8A 125, BT125T8B 125, BT49QT20A2 50 Terminator, BT49QT20B2 50 Tiger, BT49QT20B3 50 Land Flyer, BT49QT20C 50, BT49QT28A 50 Zico
• Direct Bikes: DB125T-7H 125 Cruiser
• Haotian: Cobra 125 HT125T-4
• Honda: ATC185 SA, ATC185 SC, ATC185 SD, ATC185 SE, ATC250 R, CR50 R, CR60 RD, CR60 RE, CR60 RF, CR60 RG, CR80 RA, CR80 RB, NSR50 H, NSR50 J, NSR50 K, NSR50 L, NSR50 M, NSR50 N, NSR50 P, NSR50 R, NSR50 RT, NSR50 RV, NSR50 RW, NSR50 RX, NSR50 RY, NSR50 S, NSR75 N, NSR75 P, NSR75 R, NSR75 S, NSR75 T, NSR75 V, NSR75 W, NSR75 X, NSR75 Y, TLM50 Trail
• Jinlun: JL125T12A 125 Cruiser Scooter
• Kawasaki: AE 125A1, AE 125A2, AE 125A3, AE 125A4, AE 125A5, AE 125A6, AE 125A7, AE 125A8, AE 125A9, AE 125B1, AE 125B2, AR 125LC, KDX 50A1, KDX 50A2, KDX 50A3, KDX 50A4, KDX 80, KX 60A1, KX 60A2, KX 60B1, KX 60B10, KX 60B11, KX 60B12, KX 60B13, KX 60B14, KX 60B15, KX 60B16, KX 60B17, KX 60B18, KX 60B19, KX 60B2, KX 60B3, KX 60B4, KX 60B5, KX 60B6, KX 60B7, KX 60B8, KX 60B9, KX 80B1, KX 80B2, KX 80D1
• Lexmoto: FMS 125 ZN125T-7H, FMX 125 WY125T-108, Gladiator 125 SB125T-23B, Vienna 125, Vienna 50
• Lifan: Earth Dragon 125 LF125GY3, LF125T6 125
• Pulse: Force 504T, Force 50 50, Strider 125, Vijo 125 HT125T-9
• Sinnis: Shuttle 125
• Sukida: Commander 125 SK125-4, Viper 50 SK50-QT
• Superbyke: SMAX 125
• Suzuki: DR 100D, DR 100E, DR 100F, DR 100G, DR 100H, DR 100J, DR 100K, DR 100L, DRZ 125, DRZ 125 K LK3, DRZ 125 K LK4, DRZ 125 K LK5, DRZ 125 K LK6, DRZ 125 K LK7, DRZ 125 K LK8, DRZ 125 K LK9, DRZ 125LL0, DRZ 125LL1, DRZ 125LL2, DRZ 125LL3, DRZ 125LL4, DRZ 125LL5, DRZ 125LL7, DRZ 125LL8, DRZ 125LL9, DRZ 125M2, DRZ 125M3, DRZ 125M4, DRZ 125M5, DRZ 125M6, DS 125, GT 185A, GT 185B, GT 185C, GT 185EC, GT 185K, GT 185L, GT 185M, RM 80N, RM 80T, RM 80X, RM 80Y, TS 100ERT, TS 100ERV, TS 125C, TS 50ER, TS 80ER
• Wangye: WY125T21 125B09, WY125T21 125B10, WY125T23A 125, WY125T23B 125
• Yamaha: AS1 125, AS3 125, RD 125C, RD 125DX, RD 125LC1, RD 200DX, RS 100 Drum, RS 100DX, RS 125, RS 125DX, RZ 1251GV, SR 125, SR 125SE, TY 175J, TY 175K, YTM 200 EL DX Tri-Moto, YTM 200 K Tri-Moto, YTM 200 L Tri-Moto, YZ 80F, YZ 80G, YZ 80H, YZ 80J
• Yiben: YB125T15 125 Strider, YB125T15B 125 Gladiator
