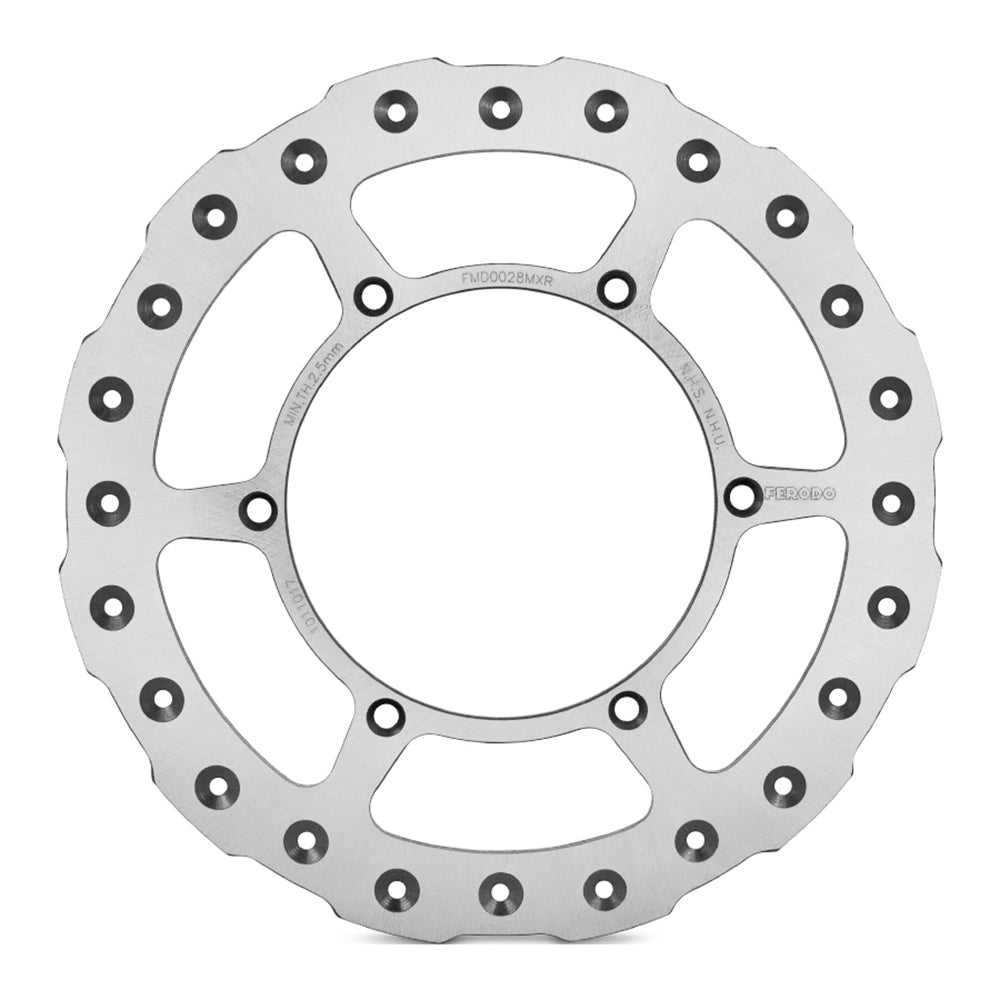

Ferodo Brake Disc Mx FMD0028MXR

A one-piece disc for off-road applications. Innovative design features ensure braking consistency, even in the muddiest conditions.

BRAKING SZ01FI (for R) | EBC MD6017D | JT BRAKING 3105SC01, 4103SC01 | NEWFREN DF5041 AF (for RF), DF5051 A (for R) | NG 276, 675, 719

---

Ferodo discs are the perfect replacement choice. They are made from the highest quality materials and are manufactured to match or exceed OE standards.
All discs are manufactured with heat treated, high carbon stainless steel that provide:

• Higher friction coefficients
• Improved wear
• Reduced weight
• Increased strength

This range covers most popular Motocross bikes and all MXR discs incorporate the Ferodo unique Dirt Expulsion System (DES)High performance brake discs manufactured with cross drilled holes in order to improve braking performance and consistency.In off road conditions, traditional cross drilled hole designs tend to act as a collection point for mud which gradually reduces performance and increases wear.This is further compounded when the mud starts to bake and harden at the high temperatures often experienced during MX useFerodo patented cross drilled hole pattern expels dirt and mud, maintaining the braking performance , reducing the risk of pad glazing and prolonging the life of the braking parts.

• Manufactured in high carbon stainless steel.
• Extended heat treatment process guarantees consistent steel hardness.
• Dirt Expulsion System maintains braking consistency even in the muddiest conditions
• External profile developed to maximise braking performance whilst minimising weight
• Precision Engineering - flatness , thickness and parallelism all guaranteed to the tightest tolerances.
• High quality paint finish on disc edges maintains disc aesthetics

Ferodo MX Brake Disc

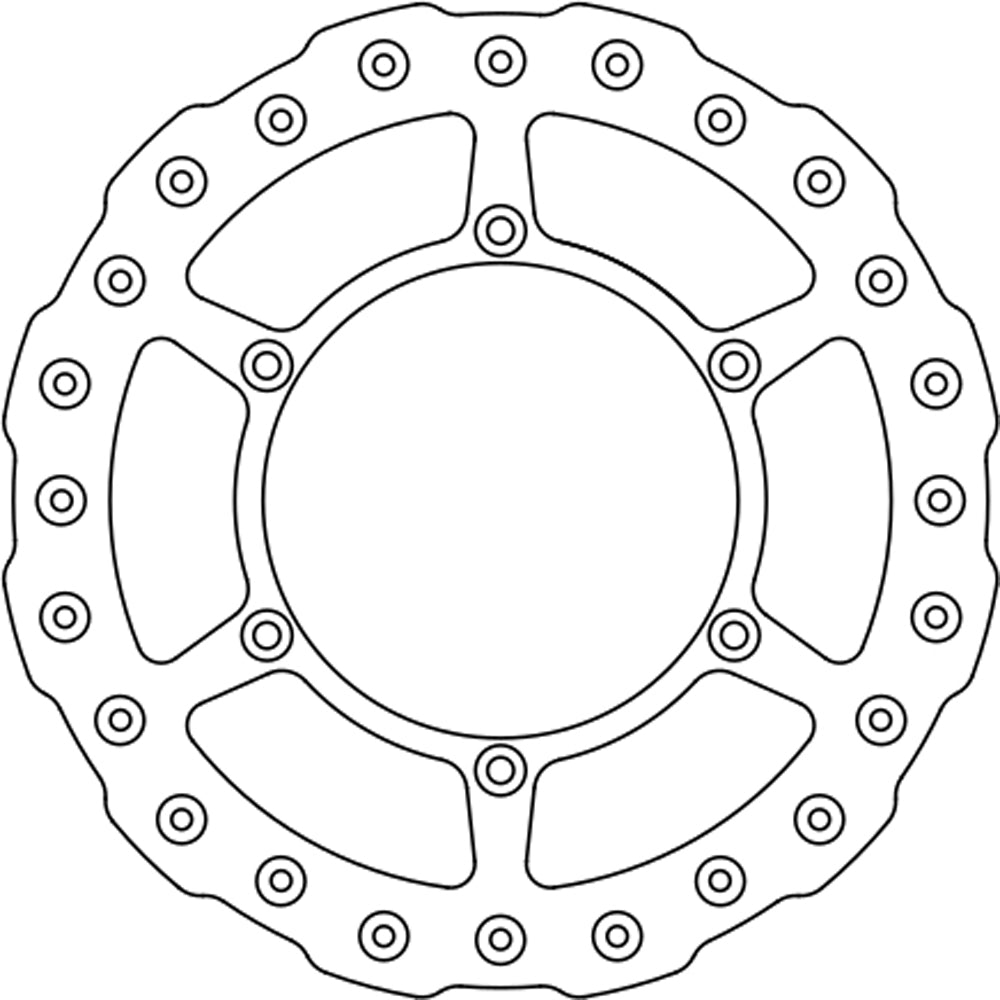

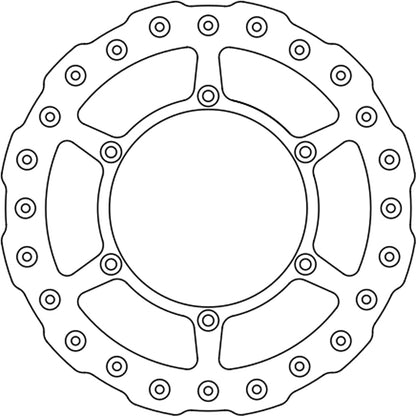

DIMENSIONS;

• Outside Diam. 250mm
• Inside Diam. 118mm
• Thickness 3mm
• Fixing Holes Number 6
• Fixing Holes Diam. 6.5mm
• Fixing Holes Centreline Diam. 134mm

Cross References:

• EBC MD6017D HTF
• JT BRAKING 3105SC01
• JT 4103SC0
• Delta DBD021

Manufacturer Part No. (MPN): FMD0028MXR
Barcode: 4044197990108

---

OEM Part Number Cross-References (Equivalent OEM #) Include:

• Suzuki: 59211 13E00, 59220 37F20, 59221 13E00
• Yamaha: 5MV 2582T 00

Outside Diameter:	250mm
Part No.:	FMD0028
Type:	Offroad
Thickness:	3mm

Fitment Summary
Compatible with 272 models (yearly).

• Suzuki: DRZ 400E, DRZ 400S, DRZ 400SM, RM 125J, RM 125K, RM 125K1, RM 125K2, RM 125K3, RM 125K4, RM 125K5, RM 125K6, RM 125K7, RM 125K8, RM 125K9, RM 125L, RM 125L0, RM 125L1, RM 125L2, RM 125M, RM 125N, RM 125P, RM 125R, RM 125S, RM 125T, RM 125V, RM 125W, RM 125X, RM 125Y, RM 250D, RM 250E, RM 250F, RM 250G, RM 250H, RM 250J, RM 250K, RM 250K1, RM 250K2, RM 250K3, RM 250K4, RM 250K5, RM 250K6, RM 250K7, RM 250K8, RM 250K9, RM 250L, RM 250L0, RM 250L1, RM 250L2, RM 250M, RM 250N, RM 250P, RM 250R, RM 250S, RM 250T, RM 250V, RM 250W, RM 250X, RM 250Y, RM 250Z, RMX 250K, RMX 250K1, RMX 250K2, RMX 250L, RMX 250M, RMX 250N, RMX 250P, RMX 250R, RMX 250S, RMX 250ST, RMX 250SV, RMX 250SW, RMX 250SX, RMX 250Y
• Yamaha: WR 250F, WR 250FL, WR 250FM, WR 250FN, WR 250FP, WR 250FR, WR 250FS, WR 250FT, WR 250FV, WR 250FW, WR 250R, WR 250RF, WR 250RG, WR 250RH, WR 250RJ, WR 250XH, WR 250XJ, WR 250XK, WR 426FK, WR 426FL, WR 426FM, WR 426FN, WR 426FP, WR 426FR, WR 450FA, WR 450FB, WR 450FD, WR 450FE, WR 450FF, WR 450FG, WR 450FH, WR 450FJ, WR 450FK, WR 450FL, WR 450FM, WR 450FN, WR 450FP, WR 450FR, WR 450FS, WR 450FT, WR 450FV, WR 450FW, WR 450FX, WR 450FY, WR 450FZ, YZ 125A1, YZ 125A2, YZ 125B1, YZ 125B2, YZ 125D1, YZ 125D2, YZ 125E1, YZ 125E2, YZ 125F1, YZ 125F2, YZ 125G1, YZ 125G2, YZ 125H1, YZ 125H2, YZ 125J1, YZ 125J2, YZ 125K, YZ 125K1, YZ 125L1, YZ 125M1, YZ 125N, YZ 125N1, YZ 125P1, YZ 125R1, YZ 125S, YZ 125S1, YZ 125T, YZ 125T1, YZ 125U, YZ 125V, YZ 125V1, YZ 125W1, YZ 125X, YZ 125X1, YZ 125Y1, YZ 125Z1, YZ 250F0, YZ 250F3, YZ 250F4, YZ 250F5, YZ 250F6, YZ 250F7, YZ 250F8, YZ 250F9, YZ 250FA, YZ 250FB, YZ 250FC, YZ 250 FD EFI, YZ 250 FE EFI, YZ 250FG, YZ 250FH, YZ 250FJ, YZ 250FK, YZ 250FL, YZ 250 FX Enduro, YZ 250FY, YZ 250Y, YZ 426FM, YZ 426FN, YZ 426FP, YZ 450F, YZ 450FA, YZ 450FB, YZ 450FD, YZ 450FE, YZ 450FF, YZ 450FG, YZ 450FH, YZ 450FJ, YZ 450FK, YZ 450FR, YZ 450FS, YZ 450FT, YZ 450FV, YZ 450FW, YZ 450 FX Enduro, YZ 450FY, YZ 450FZ
