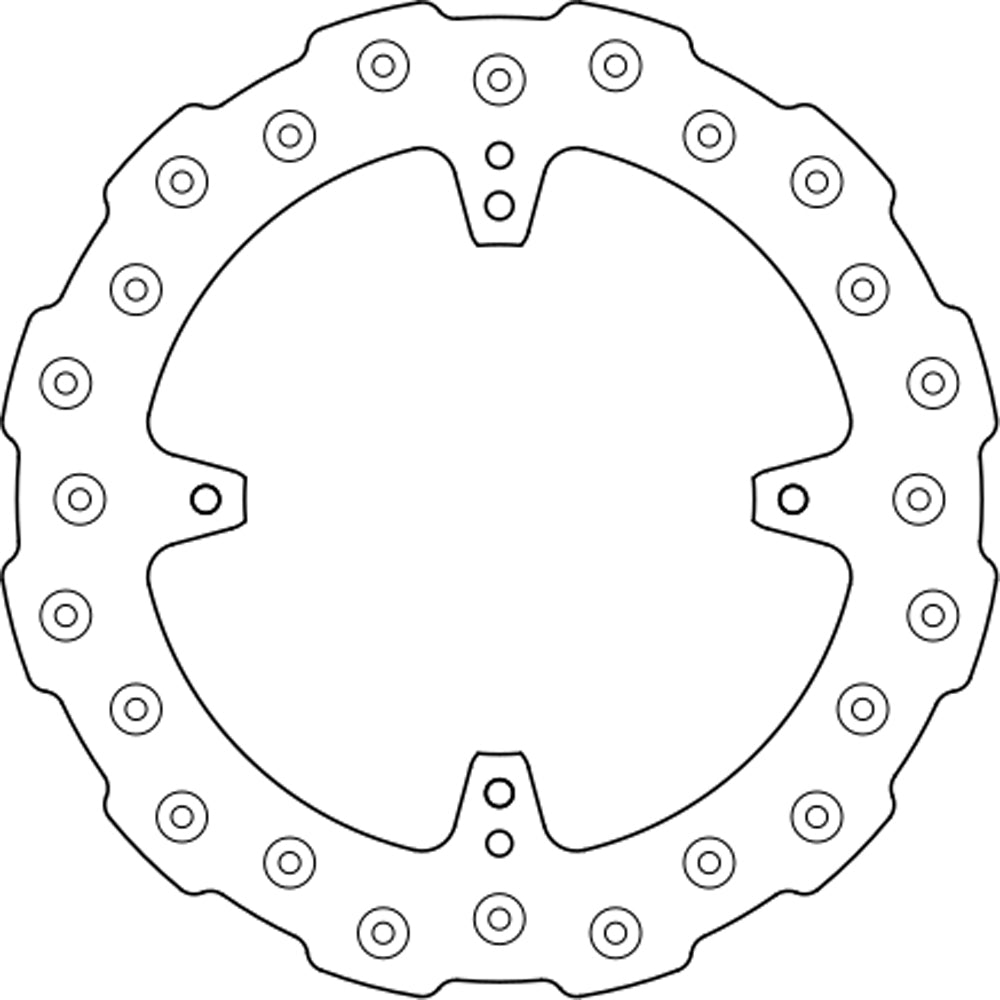

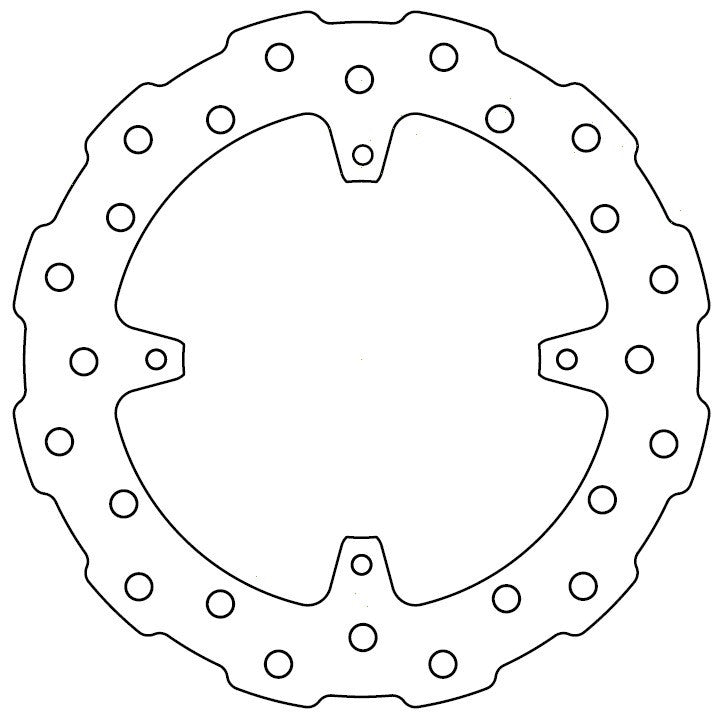

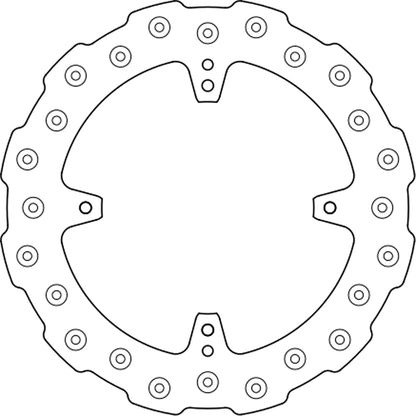

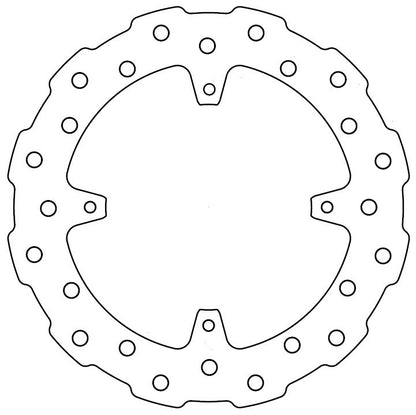

Ferodo Brake Disc Mx FMD0197MXR

A one-piece disc for off-road applications. Innovative design features ensure braking consistency, even in the muddiest conditions.

BRAKING HO60RI, HO60RID, Old part number: HO38RI | EBC MD6191D | JT BRAKING 1115SC01 | NEWFREN DF5054 A | NG 1049, 1586, 654

---

Ferodo discs are the perfect replacement choice. They are made from the highest quality materials and are manufactured to match or exceed OE standards.
All discs are manufactured with heat treated, high carbon stainless steel that provide:

• Higher friction coefficients
• Improved wear
• Reduced weight
• Increased strength

This range covers most popular Motocross bikes and all MXR discs incorporate the Ferodo unique Dirt Expulsion System (DES)High performance brake discs manufactured with cross drilled holes in order to improve braking performance and consistency.In off road conditions, traditional cross drilled hole designs tend to act as a collection point for mud which gradually reduces performance and increases wear.This is further compounded when the mud starts to bake and harden at the high temperatures often experienced during MX useFerodo patented cross drilled hole pattern expels dirt and mud, maintaining the braking performance , reducing the risk of pad glazing and prolonging the life of the braking parts.

• Manufactured in high carbon stainless steel.
• Extended heat treatment process guarantees consistent steel hardness.
• Dirt Expulsion System maintains braking consistency even in the muddiest conditions
• External profile developed to maximise braking performance whilst minimising weight
• Precision Engineering - flatness , thickness and parallelism all guaranteed to the tightest tolerances.
• High quality paint finish on disc edges maintains disc aesthetics

Ferodo MX Brake DiscDIMENSIONS

• Outside Diam. mm 240
• Inside Diam. mm 101.3
• Thickness mm 3
• Fixing Holes Number 6
• Fixing Holes Diam. mm 6.5
• Centreline Diam. mm 117

Competitor Cross Rereferences

• BRAKING HO25FI
• EBC MD6037D
• JT 1116SC01
• NEWFREN .DF.5055 A

Manufacturer Part No. (MPN): FMD0197MXR
Barcode: 4044197989997

---

OEM Part Number Cross-References (Equivalent OEM #) Include:

• Honda: 43351 KZ4 J40

Outside Diameter:	240mm
Part No.:	FMD0197
Type:	Offroad
Thickness:	3.5mm

Fitment Summary
Compatible with 155 models (yearly).

• Honda: CR125 R1, CR125 R2, CR125 R3, CR125 R4, CR125 R5, CR125 R6, CR125 R7, CR125 RT, CR125 RV, CR125 RW, CR125 RX, CR125 RY, CR250 R1, CR250 R2, CR250 R3, CR250 R4, CR250 R5, CR250 R6, CR250 R7, CR250 RH, CR250 RJ, CR250 RK, CR250 RL, CR250 RM, CR250 RN, CR250 RP, CR250 RR, CR250 RS, CR250 RT, CR250 RV, CR250 RW, CR250 RX, CR250 RY, CR500 R, CR500 R1, CR500 R2, CR500 R3, CR500 RH, CR500 RJ, CR500 RK, CR500 RL, CR500 RM, CR500 RN, CR500 RP, CR500 RR, CR500 RS, CR500 RT, CR500 RV, CR500 RW, CR500 RX, CRE250 IE, CRE300 IE, CRF250 R4, CRF250 R5, CRF250 R6, CRF250 R7, CRF250 R8, CRF250 R9, CRF250 RA, CRF250 RB, CRF250 RC, CRF250 RD, CRF250 RE, CRF250 RF, CRF250 RG, CRF250 RK, CRF250 RLA, CRF250 RX, CRF250 X, CRF300 RX, CRF300 X, CRF400 RX, CRF450 L, CRF450 R, CRF450 R2, CRF450 R3, CRF450 R4, CRF450 R8, CRF450 RA, CRF450 Rally, CRF450 RB, CRF450 RC, CRF450 RD, CRF450 RE, CRF450 RF, CRF450 RG, CRF450 RH, CRF450 RJ, CRF450 RK, CRF450 RX, CRF450 X
