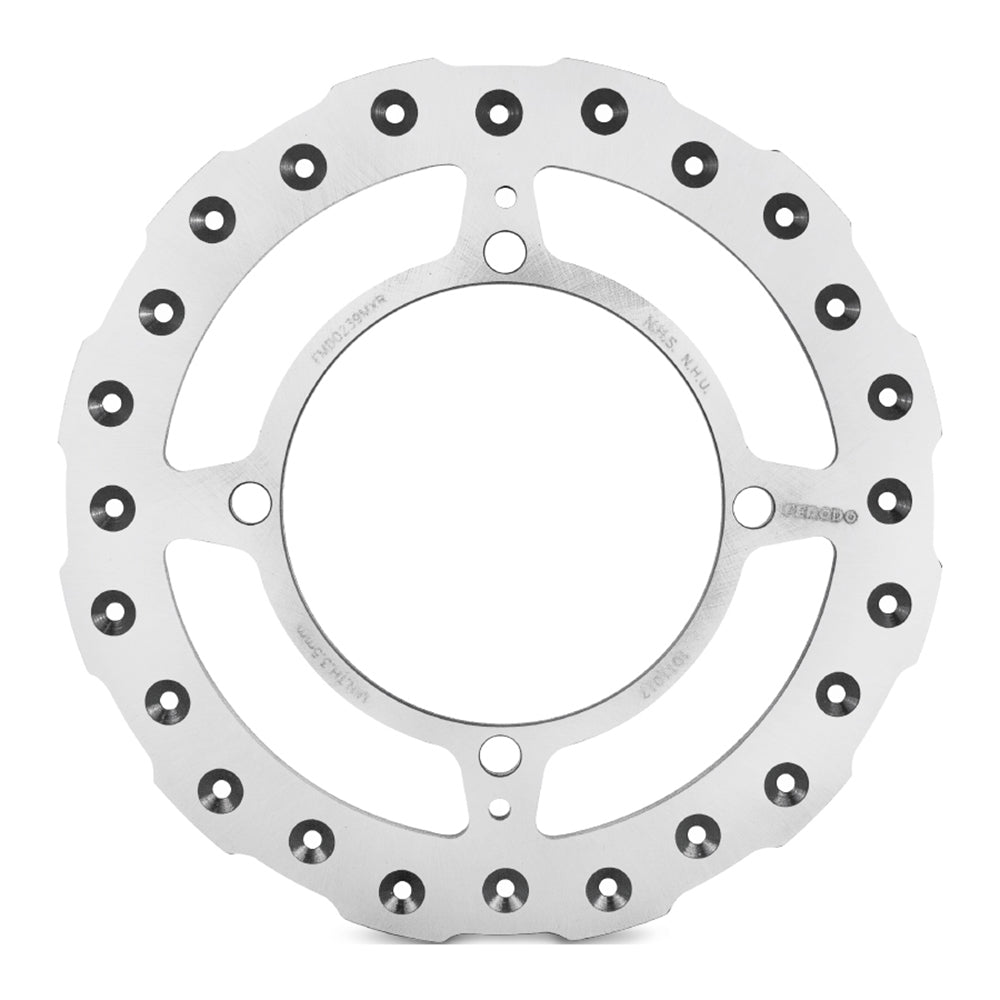

Ferodo Brake Disc Mx FMD0239MXR

A one-piece disc for off-road applications. Innovative design features ensure braking consistency, even in the muddiest conditions.

BRAKING KW35RI | JT BRAKING 2115SC01 | NEWFREN DF5080 A | NG 799

---

Ferodo discs are the perfect replacement choice. They are made from the highest quality materials and are manufactured to match or exceed OE standards.
All discs are manufactured with heat treated, high carbon stainless steel that provide:

• Higher friction coefficients
• Improved wear
• Reduced weight
• Increased strength

Ferodo Rear MX Disc

This range covers most popular Motocross bikes and all MXR discs incorporate the Ferodo unique Dirt Expulsion System (DES)

High performance brake discs manufactured with cross drilled holes in order to improve braking performance and consistency.

In off road conditions, traditional cross drilled hole designs tend to act as a collection point for mud which gradually reduces performance and increases wear.

This is further compounded when the mud starts to bake and harden at the high temperatures often experienced during MX use

Ferodo patented cross drilled hole pattern expels dirt and mud, maintaining the braking performance , reducing the risk of pad glazing and prolonging the life of the braking parts.

• Manufactured in high carbon stainless steel.
• Extended heat treatment process guarantees consistent steel hardness.
• Dirt Expulsion System maintains braking consistency even in the muddiest conditions
• External profile developed to maximise braking performance whilst minimising weight
• Precision Engineering - flatness , thickness and parallelism all guaranteed to the tightest tolerances.
• High quality paint finish on disc edges maintains disc aesthetics

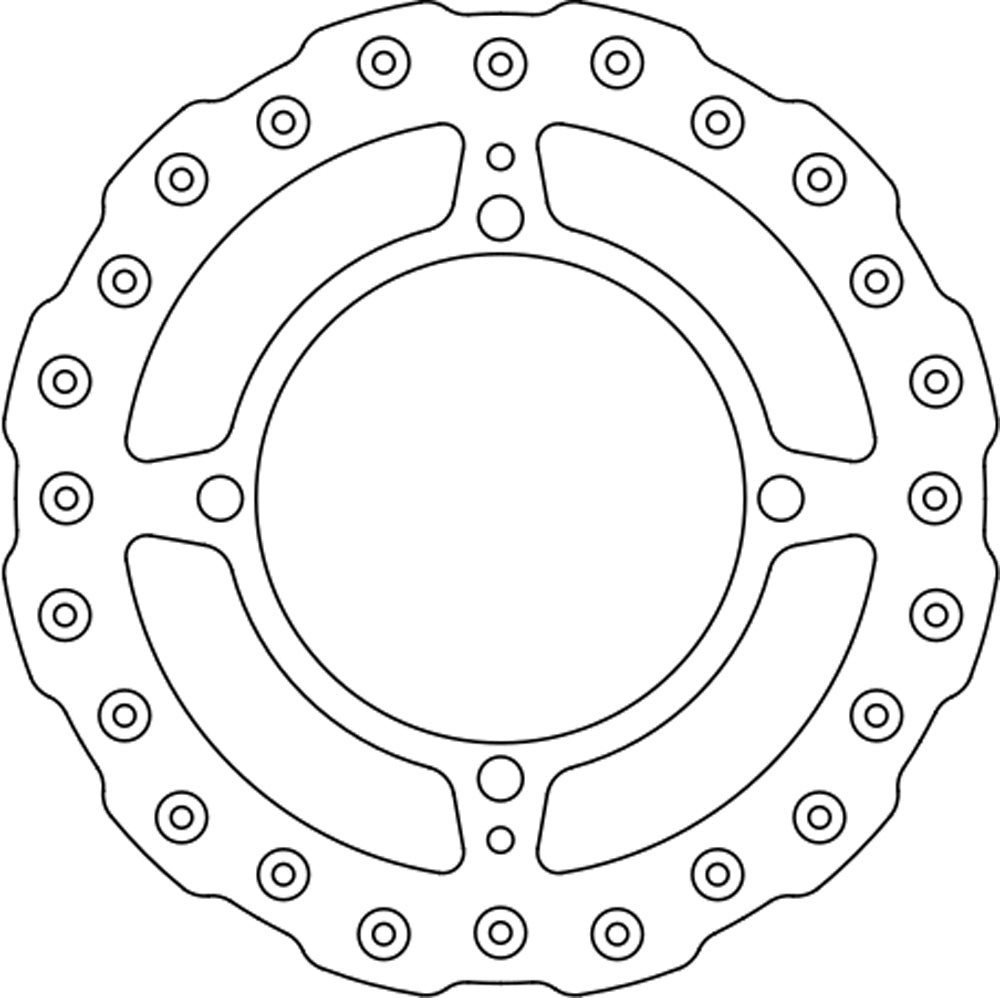

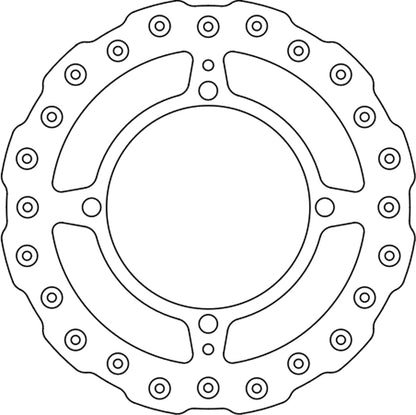

Dimensions

• Outside Diameter 240mm
• Inside Diameter 115.1mm
• Thickness 4mm
• Fixing Holes Number 4
• Fixing Holes Diameter 10.5mm
• Fixing Holes Centreline Diameter 133mm

Competitor Cross Reference

• BRAKING KW35RI
• JT 2115SC01
• NEWFREN .DF.5080 A
• Delta DBD015

Manufacturer Part No. (MPN): FMD0239MXR
Barcode: 4044197990023

Outside Diameter:	240mm
Part No.:	FMD0239
Type:	Offroad
Thickness:	4mm

Fitment Summary
Compatible with 49 models (yearly).

• Kawasaki: KX 125M1, KX 125M2, KX 125M3, KX 125M4, KX 125M5, KX 125M6, KX 250D, KX 250N, KX 250 Offroad F, KX 250X, KX 250ZMF
• Suzuki: RMZ 250 Carmichael Replica, RMZ 250K4, RMZ 250K5, RMZ 250K6, RMZ 250K7, RMZ 250K8, RMZ 250K9, RMZ 250L0, RMZ 250L1, RMZ 250L2, RMZ 250L3, RMZ 250L4, RMZ 250L5, RMZ 250L6, RMZ 250L7, RMZ 250L8, RMZ 250L9, RMZ 250M0
