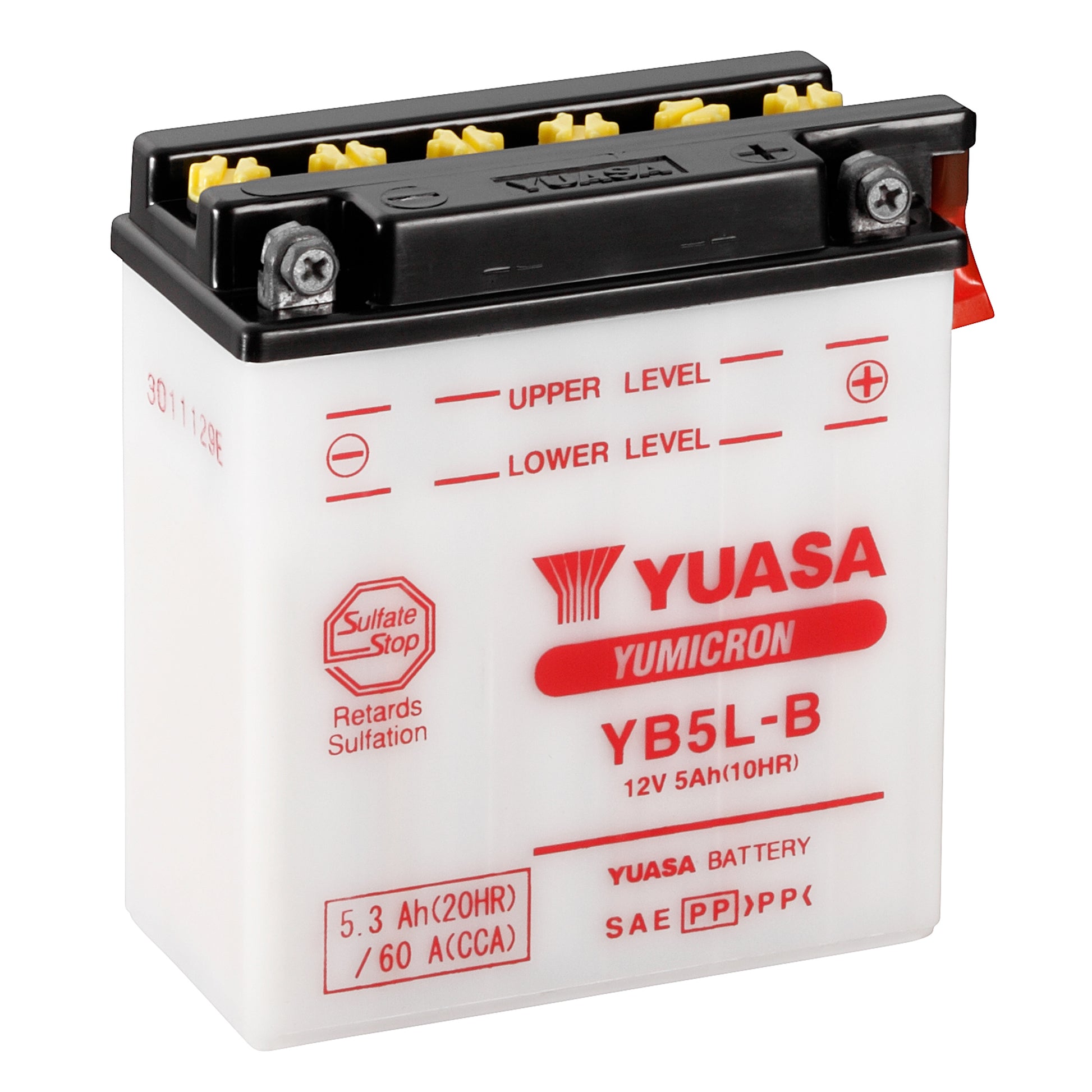

Yuasa YB5L-B (CP) 12V Combi-Pack YuMicron Battery

Ready for activation with supplied acid pack. Vertical fitment only. The high-tech, power-boosting design makes YuMicron ideal for more demanding applications, accessory-laden touring bikes and modified vehicles.
For box quantities please add multiples of 6.

---

This battery is supplied with a combi-pack containing acid.

Yumicron

Personal watercraft, snowmobiles and ATVs make special demands - and YUASA's YuMicron Battery meets them headon. The high-tech, power-boosting design also makes YuMicron ideal for accessory-laden touring bikes and modified vehicles.

• Heavy duty glass mat resists vibration damage
• Special thin Separator packs in extra plates, delivers up to 30% more cranking power than conventional types
• Through-the-wall intercell connector minimises internal resistance, maximises power
• Sulphate Stop curbs plate sulphation - and provides longer life

Installation:Position: This battery should never be fitted on its side. It is only suitable for vertical fitment. Use a factory sealed or lithium type for batteries that sit at angles.Initial charging: Most problems with batteries today are due to improper initial activation. Newly activated batteries should always be charged before you install them into any motorcycle, otherwise they will lose at least 20% of their capacity. This will definitely result in a much shorter service life or other battery problems. Fill the battery to the indicated level or until the MF combi pack is empty. Charge the battery for three to five hours at the current equivalent of 1/10 of its rated capacity to get a full charge.
Failure caused by incorrect activation or charging is not a warranty issue. Further research by GS-Yuasa shows that 95% of alleged problems occurring with batteries that have been in service for more than a couple of months and have been left standing without charge are caused by sulfation. This is a condition where a crystal like material forms on the lead plates. When this chemical reaction happens, it is impossible to restore a full charge and the battery has to be replaced. This is NOT caused by a faulty battery, it is a fault with maintenance. Please ensure batteries are kept charged on a suitable charger when not in use. Note all measurements given are nominal and may vary by 1mm or so. For an exact measurement, please contact our sales office
Manufacturer Part No. (MPN): YB5L-B(CP)
Barcode: 5050694001987

Length:	120mm
Width:	60mm
Height:	130mm
CCA:	65
Capacity:	5
Polarity:	minus/plus
Type:	Combi
Voltage:	12v

Fitment Summary
Compatible with 873 models (yearly).

• AJS: JS 125 Eco-1, JS 125 Eco-2, JS 125 Y Jianshe
• AKT Moto: AK 100S, AK 110, Komfort 115
• Bajaj: Chetak 125, Chetak 125 Classic, Chetak 150, Chetak 150 Classic, Discover 100, Discover 100ES, Discover 100M, Discover 100T, Discover 112 India Model, Discover 125, Discover 125M, Discover 125ST, Discover 125T, Discover 135, Discover 135DTS, Discover 150, Discover 150F, Discover 150S, Pulsar 135DT, Pulsar 135LS, Pulsar 150, Pulsar 150AS, Pulsar 150 Classic, Pulsar 150 DT Si, Pulsar 180, Pulsar 180 DT Si, Pulsar 200AS, Pulsar 200DT, Pulsar 200NS, Pulsar 220F, Pulsar 220S, Sunny 50, Sunny 50M, XCD 125DTS
• Beta: CRRV 250, TR 240
• Fantic: Raider 125, Raider 125LC, Regolarita 125
• Garelli: XR 125 Tiger, XRD 125 Tiger
• Gilera: RRT 125 Nebraska
• Hercules: RX9 80, RX9 80 Replica, RX9 80 Samba, SR 125 Samba, SR 80, Swing 50
• Honda: C70 C, C70 C D, C70 E, C90 MG MP, MBX125 R, NH125 Lead, NH80 MDD, NH80 MDE, NH80 MDF, NH80 MDG, NH80 MDR, NS125 F, NS125 R, NSR80 R, NVA120 120, SA75 Vision, SH75 H, SH75 J, SH75 K, SH75 L, SH75 M, SH75 N, SH75 P, SL350 K0, SL350 K1, SL350 K2, SL350 K3
• Jianshe: JS 125Y
• Jincheng: Abila 125
• Kawasaki: AE 125A1, AE 125A2, AE 125A3, AE 125A4, AE 125A5, AE 125A6, AE 125A7, AE 125A8, AE 125A9, AE 125B1, AE 125B2, AR 125LC, KAZE 115R
• Kymco: Agility 50
• Lambretta: LT 50
• Malaguti: Centro 50, Centro 50SL, Ciak 100, Ciak 50 Master, Ciak 50 Mono, Ciak 50 Twin Disc
• MZ: ETZ 251, ETZ 301, Saxon 125 Roadstar, Saxon 500, Saxon Tour 251
• Peugeot: SV 100Geo, SV 125Geo, SV 80 Executive, SV 80Geo
• Piaggio: Skipper 80
• Puch: FS 125, FS 125 Regolarita, FS 250, FS 250 Regolarita, GS 348, GS 504, GS 506
• Quelle: AT10 50 Byte
• Regent: Deluxe 125, Deluxe 150, Roadster 125, Roadster 150, Roadster 250, RT 125 Super, RT 250 Super, Sports Tourer 125, Sports Tourer 250, Trail 150, Trail 250
• Royal Enfield: Bullet 500, Bullet 500 DeLuxe, Fury 175, Mini Bullet 200, Sherpa/Crusader 175, Sixty Five 500 Drum, Taurus 325 Diesel
• Simson: Albatros 50, Altros 50, Habicht 50, Habicht 80, Habicht 80 Basic, S 125, S 80, S50 50, S51 50, S53 50, Scambler 50, Scambler 80, Schikra 125, Schikra 125 Sport, SD 50, SM 125, Spatz 50, Sperber 50, Sperber 50 Basic, Sperber 80, Sperber 80 Basic, SR 501, SR 50 Base, SR 50XC, SR 50XCE, SR 50XG, SR 50XGE, SR 80, SR 801, SR 80 Base, Star 50, Star 50 Classic, Star 80 Classic, Streetfighter 50, Streetfighter 80, Sula 100 Thunder Bird, Sula 125 Thunder Bird, Sula 50 City Bird, Sula 50 Thunder Bird, Trucky Star 50
• Suzuki: CP 80CHF, CS 80CD, DR 600 Dakar, DR 600 Djebel, DR 600L, DR 600M, DR 600N, DR 600P, DR 600R, DR 600S, DR 600SF, DR 600SG, DR 600SH, DR 600T, DR 600V, DR 650 Djebel, DR 650R, DR 650RS, GT 125A, GT 125B, GT 125C, GT 125 C EC, GT 125J, GT 125K, GT 125L, GT 125M, GT 125X4, GT 250A, GT 250B, GT 250C, GT 250K, GT 250L, GT 250M, GT 250X7, RG 250 Gamma, SB 200E, SB 200N, SB 200X, SB 200Y, SP 600 Trail, T 200 Invader, T 250 Hustler, T 250T20, T 350 Rebel
• Yamaha: Crypton 115S, NS 50 Aerox R, RD 125LC1, RD 125LC2, RD 125 LC3 YPVS, RD 350F, RD 350F2, RD 350N, RD 350R, RZ 2504L3, RZ 250R, RZ 250 RR 51L, RZ 250SE, RZ 250T, RZ 250W, RZ 350F1, RZ 350 F2 N2, RZ 350R, SRX 4001JL, SRX 4002NY, SRX 4003HU, SRX 600 single, T 105 Crypton C, T 105 Crypton R, T 105 Crypton SE, TDR 2503CL, TT 600A, TT 600B, TT 600D, TT 600E, TT 600F, TT 600G, TT 600H, TT 600J, TT 600K, TT 600L, TZR 125R, TZR 125RR, TZR 2501KT, TZR 250 2MA 2XW, TZR 250 3MA1, TZR 250 R 3XV, TZR 250SP, XT 500E, XT 550J, XT 550K, XT 550L, XT 600 2KF 3TB, XT 600 43F 49H, XT 600E, XT 600Z, XTZ 125K E, YBA 125 Enticer, YBR 125E, YBR 125ED, YBR 125EK
