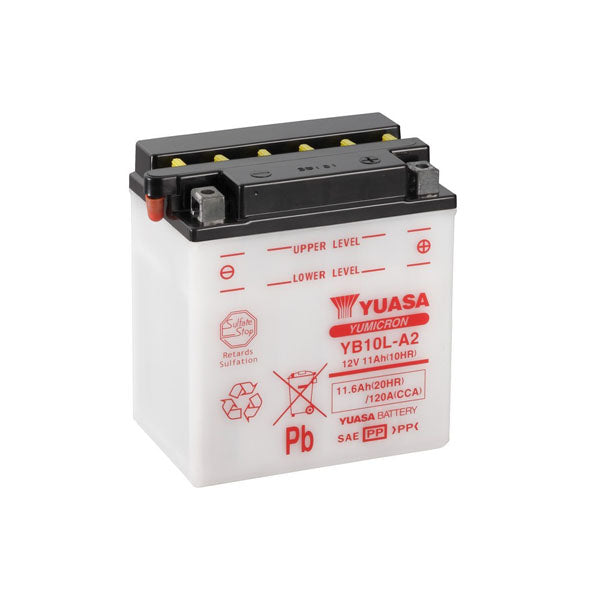

Yuasa YB10L-A2 (CP) 12V Combi-Pack YuMicron Battery

Ready for activation with supplied acid pack. Vertical fitment only. The high-tech, power-boosting design makes YuMicron ideal for more demanding applications, accessory-laden touring bikes and modified vehicles.
For box quantities please add multiples of 4.

---

This battery is supplied with a combi-pack containing acid.

Yumicron

Personal watercraft, snowmobiles and ATVs make special demands - and YUASA's YuMicron Battery meets them headon. The high-tech, power-boosting design also makes YuMicron ideal for accessory-laden touring bikes and modified vehicles.

• Heavy duty glass mat resists vibration damage
• Special thin Separator packs in extra plates, delivers up to 30% more cranking power than conventional types
• Through-the-wall intercell connector minimises internal resistance, maximises power
• Sulphate Stop curbs plate sulphation - and provides longer life

Installation:Position: This battery should never be fitted on its side. It is only suitable for vertical fitment. Use a factory sealed or lithium type for batteries that sit at angles.Initial charging: Most problems with batteries today are due to improper initial activation. Newly activated batteries should always be charged before you install them into any motorcycle, otherwise they will lose at least 20% of their capacity. This will definitely result in a much shorter service life or other battery problems. Fill the battery to the indicated level or until the MF combi pack is empty. Charge the battery for three to five hours at the current equivalent of 1/10 of its rated capacity to get a full charge.
Failure caused by incorrect activation or charging is not a warranty issue. Further research by GS-Yuasa shows that 95% of alleged problems occurring with batteries that have been in service for more than a couple of months and have been left standing without charge are caused by sulfation. This is a condition where a crystal like material forms on the lead plates. When this chemical reaction happens, it is impossible to restore a full charge and the battery has to be replaced. This is NOT caused by a faulty battery, it is a fault with maintenance. Please ensure batteries are kept charged on a suitable charger when not in use. Note all measurements given are nominal and may vary by 1mm or so. For an exact measurement, please contact our sales office
Manufacturer Part No. (MPN): YB10L-A2(CP)
Barcode: 5050694030642

Length:	135mm
Width:	90mm
Height:	145mm
CCA:	150
Capacity:	11
Polarity:	minus/plus
Type:	Combi
Voltage:	12v

Fitment Summary
Compatible with 264 models (yearly).

• Azel: GS 250
• Brixton: Cromwell 250, Felsberg 250, Glanville 250X, Saxby 250
• Gilera: RC 125 Rally, RC 125 Top Rally, RC 250 Rally, RX 250 Arizona
• Italjet: D 125 Dragster LC 4T
• Kawasaki: KLF 185 Bayou, KLT 160A, Z 200A1, Z 200A2, Z 200A3, Z 200A4, Z 200A5, Z 200A6, Z 250A1, Z 250A2, Z 250A3, Z 250B2, Z 250C1, Z 250C2, Z 250C3, Z 250G1, Z 250G2, Z 250G3, Z 250G4, Z 250J1, Z 250J2, Z 250J3, Z 650B1, Z 650B2, Z 650B3, Z 650B4, Z 650C1, Z 650C2, Z 650C3, Z 650C4, Z 650CSR, Z 650F1, Z 650F2, Z 650F3, Z 650F4, Z 650SR, Z 900A4, Z 900A5, Z 900B1
• Moto Morini: Sport 250, Turismo 250
• Suzuki: ALT 185, GN 250F, GN 250G, GN 250H, GN 250J, GN 250K, GN 250L, GN 250M, GN 250R, GN 250T, GS 250L, GS 250TT, GS 250TW, GS 250TX, GS 400B, GS 400C, GS 400E, GS 425EN, GS 425N, GS 450EE, GS 450EF, GS 450EG, GS 450EH, GS 450EJ, GS 450ES, GS 450ET, GS 450L, GS 500E, GS 500EL, GS 500EM, GS 500EN, GS 500EP, GS 500ER, GS 500ES, GS 500ET, GS 500EV, GS 500EW, GS 500EX, GS 500EY, GS 500EZ, GS 500F, GS 550C, GS 550EC, GS 550EN, GS 550ET, GS 550EV, GS 550EX, GS 550EZ, GS 550LD, GS 550LF, GS 550LG, GS 550LT, GS 550LX, GS 550M, GS 550MY, GS 550MZ, GSX 250E, GSX 250ET, GSX 250EX, GSX 250EZ, GSX 400ET, GSX 400EW, GSX 400EX, GSX 400EZ, GSX 400FD, GSX 400FE, GSX 400 FJ FAJ, GSX 400 FK FAK, GSX 400 FL FAL, GSX 400FW, GSX 400FWD, GSX 400FWS, GSX 400FX, GSX 400 T Twin, GSXR 250C, GSXR 250D, GSXR 250R, GT 185A, GT 185B, GT 185C, GT 185EC, GT 185K, GT 185L, GT 185M, GT 550A, GT 550B, GT 550C, GT 550K, GT 550L, GT 550M, TU 250 X Volty
• Yamaha: FZR 2502KR, FZR 2502RF, FZR 250 3HX1, FZR 250 EXUP, FZR 250 Fazer, FZR 250 R Exup, XC 180 N/K/L, XV 125 Virago, XV 250H, XV 250S
