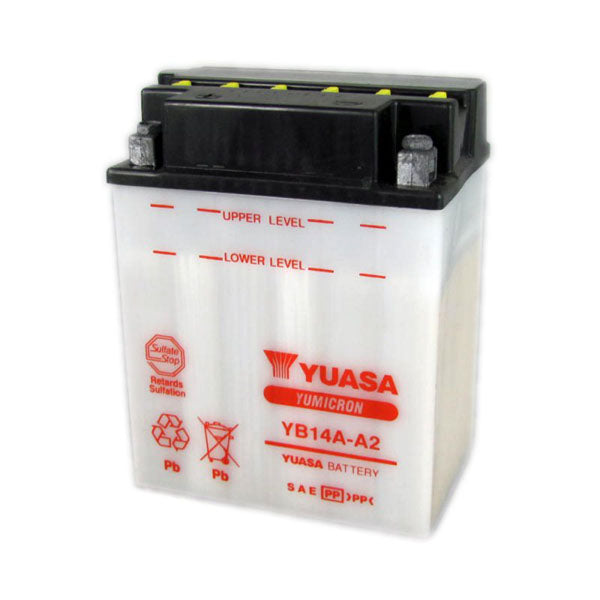

Yuasa YB14A-A2 (CP) 12V Combi-Pack YuMicron Battery

Ready for activation with supplied acid pack. Vertical fitment only. The high-tech, power-boosting design makes YuMicron ideal for more demanding applications, accessory-laden touring bikes and modified vehicles.
For box quantities please add multiples of 4.

---

This battery is supplied with a combi-pack containing acid.

Yumicron

Personal watercraft, snowmobiles and ATVs make special demands - and YUASA's YuMicron Battery meets them headon. The high-tech, power-boosting design also makes YuMicron ideal for accessory-laden touring bikes and modified vehicles.

• Heavy duty glass mat resists vibration damage
• Special thin Separator packs in extra plates, delivers up to 30% more cranking power than conventional types
• Through-the-wall intercell connector minimises internal resistance, maximises power
• Sulphate Stop curbs plate sulphation - and provides longer life

Installation:Position: This battery should never be fitted on its side. It is only suitable for vertical fitment. Use a factory sealed or lithium type for batteries that sit at angles.Initial charging: Most problems with batteries today are due to improper initial activation. Newly activated batteries should always be charged before you install them into any motorcycle, otherwise they will lose at least 20% of their capacity. This will definitely result in a much shorter service life or other battery problems. Fill the battery to the indicated level or until the MF combi pack is empty. Charge the battery for three to five hours at the current equivalent of 1/10 of its rated capacity to get a full charge.
Failure caused by incorrect activation or charging is not a warranty issue. Further research by GS-Yuasa shows that 95% of alleged problems occurring with batteries that have been in service for more than a couple of months and have been left standing without charge are caused by sulfation. This is a condition where a crystal like material forms on the lead plates. When this chemical reaction happens, it is impossible to restore a full charge and the battery has to be replaced. This is NOT caused by a faulty battery, it is a fault with maintenance. Please ensure batteries are kept charged on a suitable charger when not in use. Note all measurements given are nominal and may vary by 1mm or so. For an exact measurement, please contact our sales office
Manufacturer Part No. (MPN): YB14A-A2(CP)
Barcode: 5050694032240

Length:	135mm
Width:	90mm
Height:	176mm
CCA:	175
Capacity:	14
Polarity:	plus/minus
Type:	Combi
Voltage:	12v

Fitment Summary
Compatible with 298 models (yearly).

• Adly: Cross 300 X Road
• Can Am: Rally 200
• Honda: ATC185 SA, ATC185 SC, ATC185 SD, ATC185 SE, ATC200 Drum, ATC200 X
• Hytrack: HY 310, HY 410
• Kawasaki: KAF 300 Mule, KEF 300 Lakota, KEF 300 Lakota Sport, KVF 300 Prairie 4x4, KVF 3604x4, KVF 360A1, KVF 360A2, KVF 360A3, KVF 360AAF, KVF 360ABF, KVF 360ACF, KVF 360B1, KVF 360B2, KVF 360B3, KVF 360B4, KVF 400 Prairie 4x4
• Polaris: 250 2x4 4x4, Big Boss 250 4x6 6x6, Big Boss 3006x6, Cyclone 250X, Diesel 4504x4, Hawkeye 300, Magnum 425 4x4 6x6, P 400L, Professional 2500 4252x4, Ranger 425, Scrambler 250, Sport 400, Trail Blazer 250, Trail Blazer 250 Freedom, Trail Boss 250, VXL 300ST, Xpedition 4004x4, Xpedition 4254x4, Xplorer 2504x4, Xplorer 3004x4, Xplorer 4004x4, Xplorer 5004x4, Xpress 300L, Xpress 400L
• Suzuki: LTF 230G, LTF 230H, LTF 230XH, LTF 230XJ, LTF 230XK, LTF 230XL, LTF 230XM, LTF 230XN, LTF 230XP, LTF 230XR, LTF 230XS, LTF 230XT, LTF 230XV, LTF 230XW, LTF 230XX, LTF 230XY, LTF 230XZ, LTF 250 F Ozark, LTF 250J, LTF 250K, LTF 250K1, LTF 250L, LTF 250M, LTF 250N, LTF 250P, LTF 250 Quadrunner, LTF 250R, LTF 250S, LTF 250T, LTF 250V, LTF 250W, LTF 250X, LTF 250Y, LTF 3004x4, LTF 300 F KingQuad
• Yamaha: YFM 250A, YFM 250B, YFM 250 Bear Tracker, YFM 250 Big Bear, YFM 250 Bruin, YFM 250R, YFM 250 RSPX, YFM 250W, YFM 350FW, YFM 350FWB, YFM 350X, YFM 400FA, YFM 400FW
