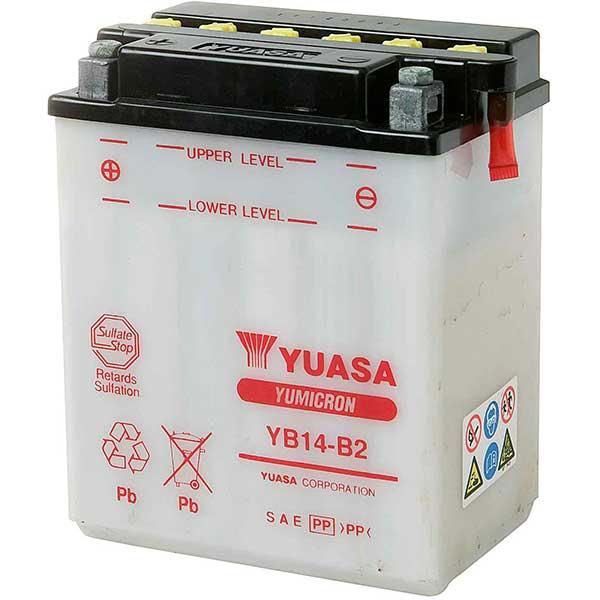

Yuasa YB14-B2 (CP) 12V Combi-Pack YuMicron Battery

Ready for activation with supplied acid pack. Vertical fitment only. The high-tech, power-boosting design makes YuMicron ideal for more demanding applications, accessory-laden touring bikes and modified vehicles.
For box quantities please add multiples of 4.

---

This battery is supplied with a combi-pack containing acid.

Yumicron

Personal watercraft, snowmobiles and ATVs make special demands - and YUASA's YuMicron Battery meets them headon. The high-tech, power-boosting design also makes YuMicron ideal for accessory-laden touring bikes and modified vehicles.

• Heavy duty glass mat resists vibration damage
• Special thin Separator packs in extra plates, delivers up to 30% more cranking power than conventional types
• Through-the-wall intercell connector minimises internal resistance, maximises power
• Sulphate Stop curbs plate sulphation - and provides longer life

Installation:Position: This battery should never be fitted on its side. It is only suitable for vertical fitment. Use a factory sealed or lithium type for batteries that sit at angles.Initial charging: Most problems with batteries today are due to improper initial activation. Newly activated batteries should always be charged before you install them into any motorcycle, otherwise they will lose at least 20% of their capacity. This will definitely result in a much shorter service life or other battery problems. Fill the battery to the indicated level or until the MF combi pack is empty. Charge the battery for three to five hours at the current equivalent of 1/10 of its rated capacity to get a full charge.
Failure caused by incorrect activation or charging is not a warranty issue. Further research by GS-Yuasa shows that 95% of alleged problems occurring with batteries that have been in service for more than a couple of months and have been left standing without charge are caused by sulfation. This is a condition where a crystal like material forms on the lead plates. When this chemical reaction happens, it is impossible to restore a full charge and the battery has to be replaced. This is NOT caused by a faulty battery, it is a fault with maintenance. Please ensure batteries are kept charged on a suitable charger when not in use. Note all measurements given are nominal and may vary by 1mm or so. For an exact measurement, please contact our sales office
Manufacturer Part No. (MPN): YB14-B2(CP)
Barcode: 5050694032257

Length:	135mm
Width:	90mm
Height:	166mm
CCA:	175
Capacity:	14
Polarity:	plus/minus
Type:	Combi
Voltage:	12v

Fitment Summary
Compatible with 118 models (yearly).

• Arctic Cat: CR 400, H1 650 Auto, Mud Pro 650, Utility 400 Automatic, Utility 650 4x4 H1, V Twin 650
• Bimota: DB2 904SR
• Cagiva: ALA Blu 250, Ala Rossa 250, Ala Verde 250
• Honda: CB450 SJ, VT800 C, XBR500 F, XBR500 G, XBR500 H, XBR500 SH, XBR500 SJ, XBR500 SK, XBR500 SL, XL600 LM-F, XL600 LM-G, XL600 LM-H, XLV750 RD, XLV750 RE, XLV750 RF, XLV750 RG, XLV750 RH, XLV750 RJ, XRV750 L, XRV750 M, XRV750 N, XRV750 P, XRV750 R, XRV750 S, XRV750 T, XRV750 V, XRV750 W, XRV750 X, XRV750 Y, XRV750 YA, XRV750 YB, XRV750 YC
• Linhai: Goon 260 Quad
• Massey Ferguson: MF 2502wd, MF 2504wd, MF 3002wd, MF 3004wd, MF 4004wd, MF 5004wd
• Yamaha: YFM 250 Big Bear, YFM 350AN, YFM 350FA, YFM 350 FG FW GG, YFM 350FX, YFM 350 Raptor, YFM 350X
