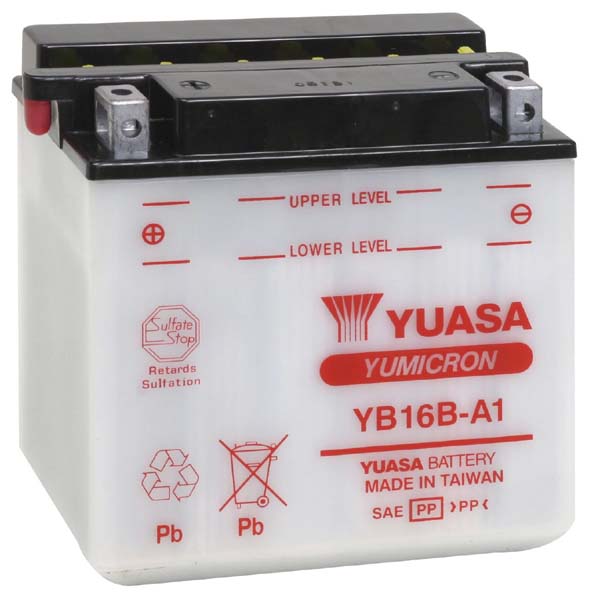

Yuasa YB16B-A1 (CP) 12V Combi-Pack YuMicron Battery

Ready for activation with supplied acid pack. Vertical fitment only. The high-tech, power-boosting design makes YuMicron ideal for more demanding applications, accessory-laden touring bikes and modified vehicles.
For box quantities please add multiples of 4.

---

This battery is supplied with a combi-pack containing acid.

Yumicron

Personal watercraft, snowmobiles and ATVs make special demands - and YUASA's YuMicron Battery meets them headon. The high-tech, power-boosting design also makes YuMicron ideal for accessory-laden touring bikes and modified vehicles.

• Heavy duty glass mat resists vibration damage
• Special thin Separator packs in extra plates, delivers up to 30% more cranking power than conventional types
• Through-the-wall intercell connector minimises internal resistance, maximises power
• Sulphate Stop curbs plate sulphation - and provides longer life

Installation:Position: This battery should never be fitted on its side. It is only suitable for vertical fitment. Use a factory sealed or lithium type for batteries that sit at angles.Initial charging: Most problems with batteries today are due to improper initial activation. Newly activated batteries should always be charged before you install them into any motorcycle, otherwise they will lose at least 20% of their capacity. This will definitely result in a much shorter service life or other battery problems. Fill the battery to the indicated level or until the MF combi pack is empty. Charge the battery for three to five hours at the current equivalent of 1/10 of its rated capacity to get a full charge.
Failure caused by incorrect activation or charging is not a warranty issue. Further research by GS-Yuasa shows that 95% of alleged problems occurring with batteries that have been in service for more than a couple of months and have been left standing without charge are caused by sulfation. This is a condition where a crystal like material forms on the lead plates. When this chemical reaction happens, it is impossible to restore a full charge and the battery has to be replaced. This is NOT caused by a faulty battery, it is a fault with maintenance. Please ensure batteries are kept charged on a suitable charger when not in use. Note all measurements given are nominal and may vary by 1mm or so. For an exact measurement, please contact our sales office
Manufacturer Part No. (MPN): YB16B-A1(CP)
Barcode: 5050694032295

Length:	160mm
Width:	90mm
Height:	161mm
CCA:	207
Capacity:	16
Polarity:	plus/minus
Type:	Combi
Voltage:	12v

Fitment Summary
Compatible with 222 models (yearly).

• Cagiva: Elefant 750E, Elefant 750ie, Elefant 750 Lucky Explorer, Elefant 750 Serie I, Elefant 900 E AC, Elefant 900ie, Elefant 900 ie AC, Elefant 900 ie GT, Elefant 900 Lucky Explorer, Gran Canyon 900, Gran Canyon 900MAX
• Ducati: 907E, 907ie, Paso 907 BiPosto, Paso 907 Sport
• Harley-Davidson: FLST 1340 Heritage Softail Classic, FLSTC 1340 Heritage Softail Classic, FLSTF 1340 Softail Fat Boy, FXE 1340 Super Glide, FXEF 1340 Super Glide Fat Bob, FXLR 1340 Superglide low rider, FXR 1340 Super Glide, FXRC 1340 Superglide low glide custom, FXRD 1340 Super Glide – Sport Glide Grand Touring, FXRDG 1340 Super Glide Disc Glide, FXRS 1340 Super Glide Sport, FXRSSP 1340 Super Glide Low Rider, FXRT 1340 Sport Glide, FXRT 1340 Superglide Touring Sport Glide, FXSB 1340 Superglide low rider, FXST 1340 Softail Standard, FXSTC 1340 Softail Custom, FXSTS 1340 Softail Springer, FXWG 1340 Super glide Wide Glide, XLH 1000 Sportster, XLH 1100 Sportster, XLH 1200 Sportster, XLH 883 Sportster, XLS 1000 Sportster, XR 1000 Sportster w comp heads
• Honda: SXS1000 Pioneer, VF1000 F2F, VF1000 F2G, VF1000 FE, VF1000 FF F2F, VF1000 FG F2G, VF1000 RE, VF1000 RF, VF1000 RG
• Suzuki: VS 600GL, VS 600GLF, VS 700 GLE F, VS 750GL, VS 800GL, VS 800 GL VR51B, VS 800 GL VS52B, VS 800S, VX 800L, VX 800M, VX 800N, VX 800P, VX 800R, VX 800S, VX 800T
