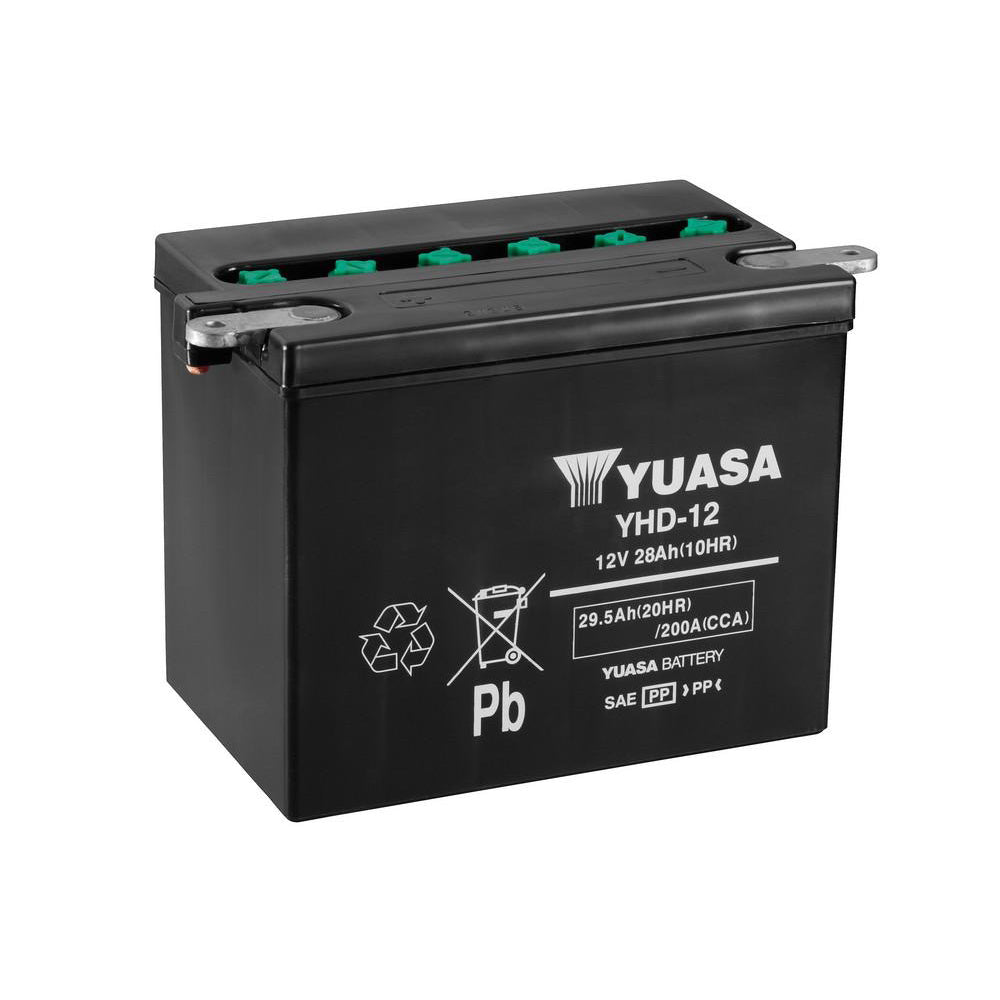

Yuasa YHD-12 (DC) 12V Dry Charged Conventional Battery

Dry charged battery no acid pack (available sperately). The Conventional battery range is the industry standard for motorcycles and more, with patented separators providing high cranking power.

---

Dry charged battery supplied without acid. Acid packs sold separately (AP500 and AP1000).The Conventional battery range is the industry standard for motorcycles, snowmobiles and ride-on mowers.Features:

• Specifically designed to protect against seepage and corrosion
• Made to withstand vibration
• Patented separators providing high cranking power
• Through-partition construction delivers maximum power while the unique sealed posts resist corrosion for a longer battery life

Installation:Position: This battery should never be fitted on its side. It is only suitable for vertical fitment. Use a factory sealed type or lithium for batteries that sit at angles.Initial charging: Most problems with batteries today are due to improper initial activation. Newly activated batteries should always be charged before you install them into any motorcycle, otherwise they will lose at least 20% of their capacity. This will definitely result in a much shorter service life or other battery problems. Fill the battery to the indicated level or until the MF combi pack is empty. Charge the battery for three to five hours at the current equivalent of 1/10 of its rated capacity to get a full charge.
Failure caused by incorrect activation or charging is not a warranty issue. Further research by GS-Yuasa shows that 95% of alleged problems occurring with batteries that have been in service for more than a couple of months and have been left standing without charge are caused by sulfation. This is a condition where a crystal like material forms on the lead plates. When this chemical reaction happens, it is impossible to restore a full charge and the battery has to be replaced. This is NOT caused by a faulty battery, it is a fault with maintenance. Please ensure batteries are kept charged on a suitable charger when not in use. Note all measurements given are nominal and may vary by 1mm or so. For an exact measurement, please contact our sales office
Manufacturer Part No. (MPN): YHD-12(DC)
Barcode: 5050694005701

Length:	207mm
Width:	133mm
Height:	166mm
CCA:	200
Capacity:	29.5
Polarity:	plus/minus
Type:	Dry
Voltage:	12v

Fitment Summary
Compatible with 215 models (yearly).

• Ducati: 500S, GTL 350, GTL 500 Sport, GTV 350SL, GTV 350 Sport, GTV 350XL, GTV 500, GTV 500SL
• Harley-Davidson: FLFB 1200 Electra Glide, FLH 1200 Electra Glide, FLHR 1340 Road King (EG), FLHS 1200 Electra Glide Sport, FLHT 1200 Electra Glide Standard, FLHT 1340 Electra Glide Standard, FLHTC 1340 Electra Glide Classic, FLHTCU 1340 Electra Glide Ultra Classic, FLSTC 1200 Heritage Softail Classic, FLTC 1340 Tour Glide, FLTCU 1340 Tour Glide
• Honda: GL1000 K0, GL1000 K1, GL1000 K2, GL1000 K3, GL1000 KZ, GL1100 A, GL1100 B, GL1100 C, GL1100 D, GL1200 D, GL1200 DE, GL1200 DF, GL1200 DG, GL1200 DH, GL1500 A, GL1500 F6C, GL1500 J, GL1500 K, GL1500 L, GL1500 SE
• Kawasaki: VN 1500 Vulcan, Z 1300A1, Z 1300A2, Z 1300A3, Z 1300A4, Z 1300A5, ZG 1300A1, ZG 1300A2, ZG 1300A3, ZG 1300A4, ZN 1300A1, ZN 1300A2, ZN 1300A3, ZN 1300A4, ZN 1300A5, ZN 1300A6
• Moto Guzzi: Nevada 350, Quota 1000
• Suzuki: LT 400X
• Yamaha: XJ 1100, XS 1100, XS 1100S, XV 1000TR1, XV 1000 Virago, XV 1000 Virago SE, XV 1100 Virago, XVZ 1200 Venture Royal
