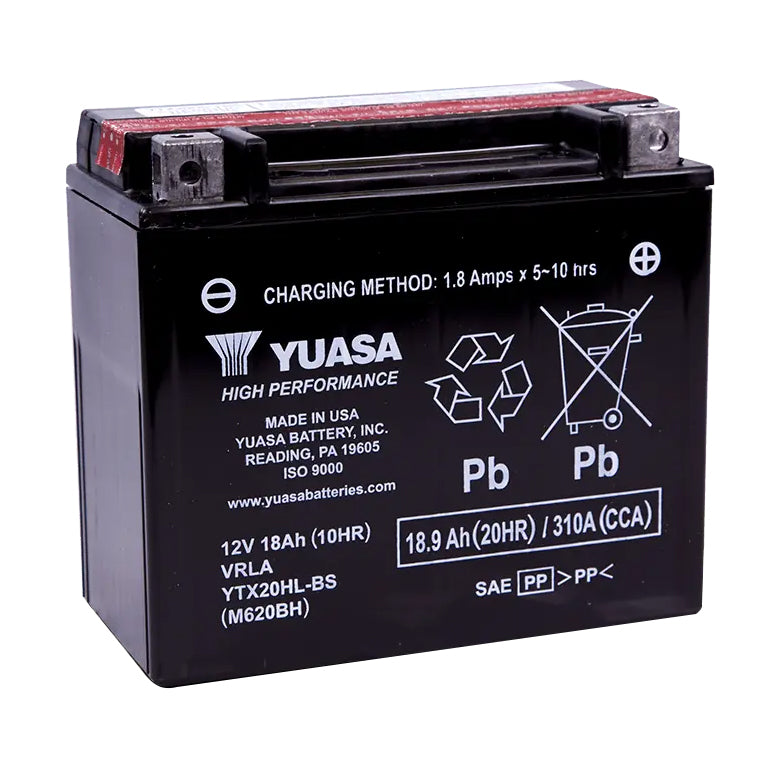

Yuasa YTX20HL-BS (CP) 12V Combi-Pack High Performance MF VRLA Battery

Ready for activation with supplied acid pack. Vertical fitment only. High performance AGM VRLA batteries, incorporating extra battery plates with a specialist design for increased cranking amps, less maintenance and longer life.

---

This battery is supplied with a combi-pack containing acid.A range of high performance AGM VRLA batteries, incorporating extra battery plates with a specialist design for increased cranking amps, less maintenance and longer life.

• Increased cranking power - up to 30% more CCA than standard AGM batteries
• High resistance to vibration and corrosion
• Selected models supplied filled and ready to fit

Installation:Position: This battery should never be fitted on its side. It is only suitable for vertical fitment. Use a factory sealed type or lithium for batteries that sit at angles.Initial charging: Most problems with batteries today are due to improper initial activation. Newly activated batteries should always be charged before you install them into any motorcycle, otherwise they will lose at least 20% of their capacity. This will definitely result in a much shorter service life or other battery problems. Fill the battery to the indicated level or until the MF combi pack is empty. Charge the battery for three to five hours at the current equivalent of 1/10 of its rated capacity to get a full charge.
Failure caused by incorrect activation or charging is not a warranty issue. Further research by GS-Yuasa shows that 95% of alleged problems occurring with batteries that have been in service for more than a couple of months and have been left standing without charge are caused by sulfation. This is a condition where a crystal like material forms on the lead plates. When this chemical reaction happens, it is impossible to restore a full charge and the battery has to be replaced. This is NOT caused by a faulty battery, it is a fault with maintenance. Please ensure batteries are kept charged on a suitable charger when not in use.Retailers: This battery is supplied with a combi-pack containing acid and requires activation prior to sale. If it is an MF type, it should be filled and left to stand uncapped until all the acid has soaked into the battery plates, which gives the appearance of an empty battery. Only then can it be capped and charged. If this procedure is not followed correctly, it can result in battery spills and a shorter life span. MF types should never be unsealed or additional acid added. Note all measurements given are nominal and may vary by 1mm or so. For an exact measurement, please contact our sales office
Manufacturer Part No. (MPN): YTX20HL-BS(CP)
Barcode: 048493621234

Length:	175mm
Width:	90mm
Height:	155mm
CCA:	310
Capacity:	18
Polarity:	minus/plus
Type:	Combi
Voltage:	12v

Fitment Summary
Compatible with 868 models (yearly).

• Arctic Cat: Alterra 570, Alterra 600, Alterra 600 Phantom XT EPS 49, Alterra 600 Phantom XT EPS 50, Bear Cat 4502x4, Bear Cat 4504x4
• Battistinis: Envy 1350, Envy 1500, Envy 1600, Envy 1700, Freedom 2000, Hallucination 1850, Hooker 1600, Imagine 1500, Imagine 1600, Imagine 1700, Lopez 1700, Mamba 2000, Monaco 1500, Monaco 1600, Monaco 1650, Monaco 1700, Moto Rosso 1850, Primitive 1350, Primitive 1500, Primitive 1600, Primitive 1700, Red Dragon 1350, Torment 1850, Trojan 1650
• Bombardier: Traxter 500 autoshift, Traxter 500Max, Traxter 500XL, Traxter 500XT
• Boss Hoss: BHC-3 LS3 6200, BHC-3 LS3 6200SS
• Buell: S1 1200 Lightning, S1 1200 White Lightning, S3 1200 Thunderbolt, S3T 1200 Thunderbolt
• Can Am: DS 650X, Outlander 1000 EFi 4x4, Outlander 1000 Efi 6x6, Outlander 1000 STD XXC 4x4, Outlander 400 4x4 MAX, Outlander 400 4x6 MAX, Outlander 400 STD XT, Outlander 5004x4, Outlander 500 4x4 DPS, Outlander 500 4x4 MAX, Outlander 500 4x4 STD, Outlander 500 4x4 XT, Outlander 500 Max DPS, Outlander 500 Max STD, Outlander 500 Max XT, Outlander 570, Outlander 570MAX, Outlander 570 X MR, Renegade 1000 RS 4x4, Renegade 1000 RT 4x4, Renegade 1000 STD XXC 4x4, Renegade 500 4x4 Efi, Renegade 500 4x4 STD, Renegade 570 X MR
• Dakota Indian: Dakota 4 1850 Classic, Dakota 4 1850 Highway, Dakota 4 1850Si
• Harley-Davidson: Dyna 1450, Fat Bob 1300, FLHC 1340 Electra Glide Classic, FLHT 1340 Electra Glide Standard, FLS 1584 Softail Slim, FLSTB 1584 Softail Bad Boy, FLSTC 1340 Heritage Softail Classic, FLSTC 1584 Heritage Softail Classic, FLSTF 1340 Fat Bob, FLSTS 1340 Heritage Springer Softail, FLT 1340 Tour Glide, FX 1200 Super Glide, FX 1340 Super Glide, FXCWC 1584 Rocker Softail, FXDB 1584 Dyna Glide Street Bob, FXE 1340 Super Glide, FXLRS 1340 Low Rider, FXR 1340 Super Glide II, FXRS 1340 Super Glide Sport, FXRS 1450 Superglide Rubber Mount, FXS 1200 Low Rider, FXS 1340 Superglide low rider, FXS 1584 Superglide low rider, FXSB 1584 Superglide low rider, FXST 1584 Softail Standard, FXSTi 1584 Softail Standard, FXWG 1340 Super glide Wide Glide, Low Rider 1300, Super Glide 1300, VRSCA 1180 V-Rod, XL 883R, XL 883 Sportster, XL 883 Sportster Custom 53, XLCR 1000 Sportster, XLH 1000 Sportster, XLX 1000 Sportster, XR 1000 Sportster w comp heads
• Herald (HMC): Nomad 250 Custom, Roamer 250 Custom, Vagabond 250 Custom
• Indian: Challenger 1768 Dark Horse, Challenger 1768 Limited, Challenger 1811, Challenger 1811 Dark Horse, Chief 1811 Vintage, Pursuit 1768 Dark Horse, Roadmaster 1811 Dark Horse, Roadmaster 1890 Dark Horse, Springfield 1890 Dark Horse, Super Chief 1811, Super Chief 1890 Limited, Vintage 1811 Dark Horse
• Kawasaki: KLF 400 Bayou 4x4 B series, KRF 800 Teryx, KRT 800 Teryx 4, KVF 400 Prairie 4x4, KXT 250 B Tecate, KXT 250 Tecate
• Masai: A 550IX, A 700L7e, A 750 Infinite, A 750iX, AT 750 Infinite, S 600 Crossover, S 750 Crossover, S 800 Crossover, S 900 Crossover
• Moto Morini: Camel 500, Excalibur 350
• Polaris: General 1000, Ranger 1000 Forest, RZR 1000XP, RZR Turbo4 1000S, RZR Turbo4 1000 S XP EPS, Scrambler 1000 HO EPS XP, Scrambler 1000 HO XP EPS, Scrambler 1000 XP S EPS, Scrambler 850, Scrambler 850SP, Scrambler 850XP, Sportsman 1000 Falcon, Sportsman 1000XP, Sportsman 800, Sportsman 800EFI, Sportsman 800 EFI Big Boss, Sportsman 800 Forest, Sportsman 800X2, Sportsman 850XP, Zeus 800
• Suzuki: QUV 620F
• TGB: Avenger 400
• Yamaha: RS 1049 Venture TF, SR 1049 Viper LTX, VK 1049 Professional II, YFM 450FGi, YFM 450FGP, YFM 450FX, YFM 450 Rhino
