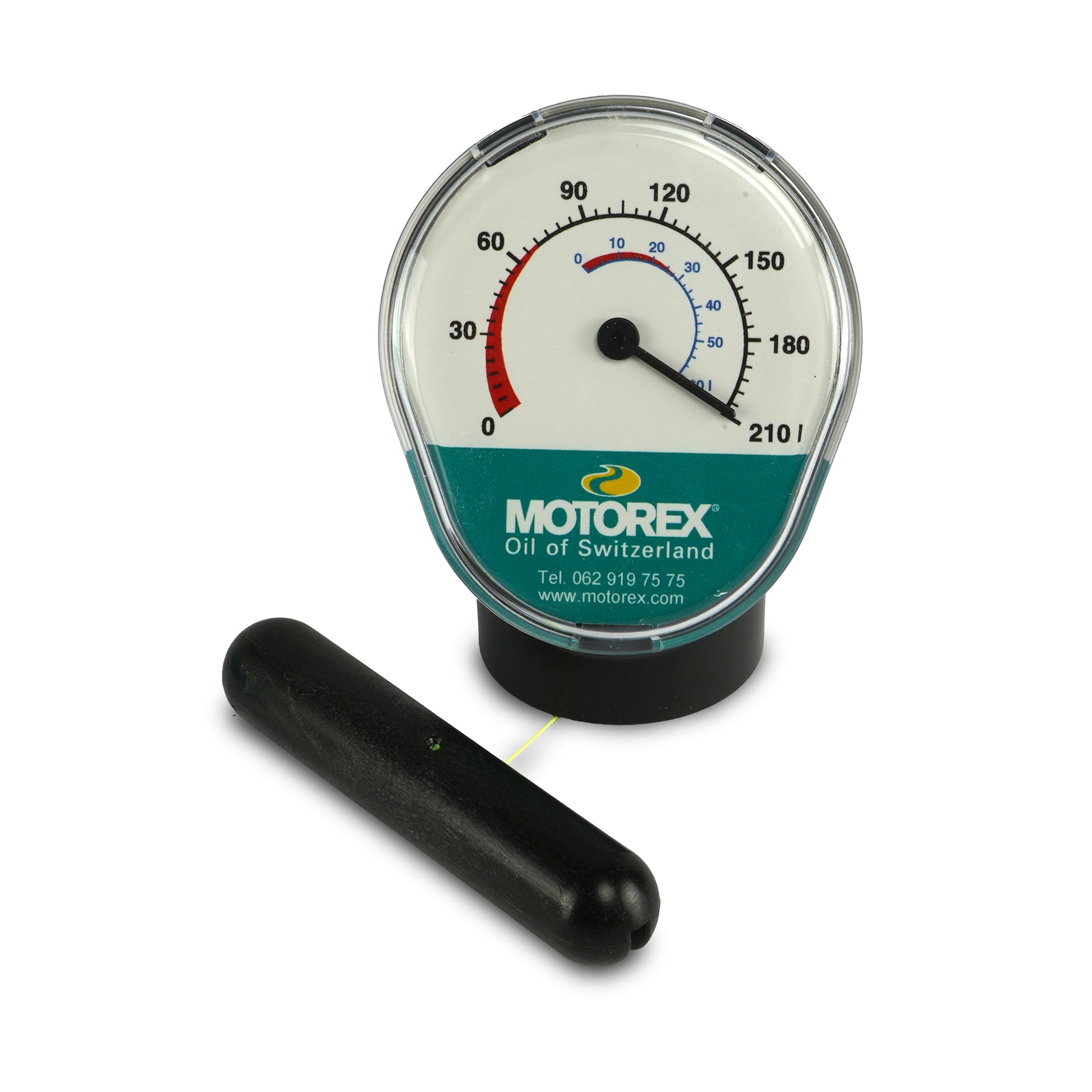

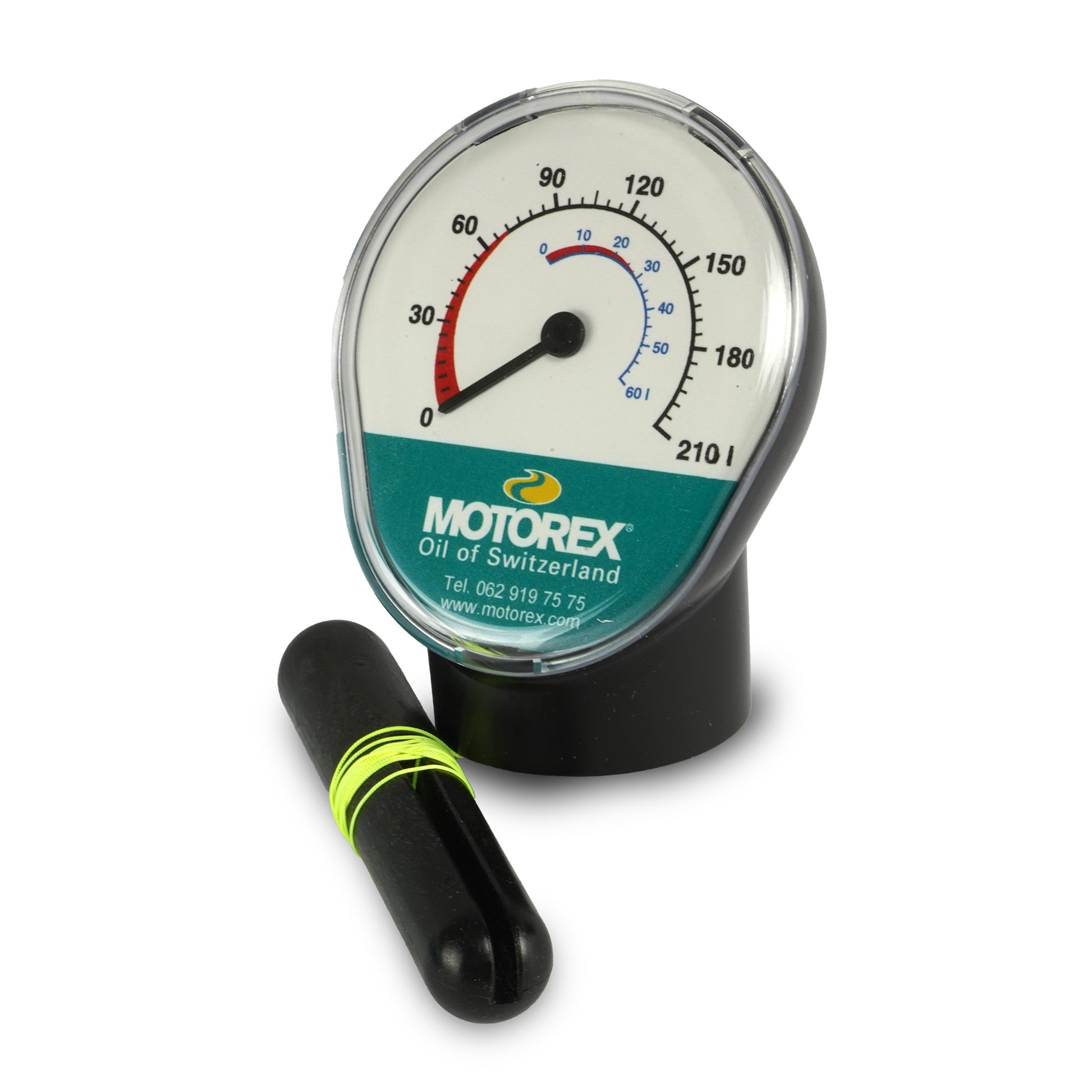

Motorex Level Indicator For 60L/200L Barrel

Barrel Level Indicator for 60/200 litre barrels. Designed for oils for motor vehicles, industrial and used oils.

---

Instructions:

1. Remove the capsule from the vent bung of the barrel
2. Slide the float of the indicator through the venting plug into the barrel
3. The indicator is to be slipped on to the venting plug. It fits tightly and prevents dirt from penetrating the barrel. At the same time sufficient ventilation is required.
4. The float lies on the surface of the liquid.
5. The scale indicates the content nearly accurate to the litre.
6. If the barrel is empty, the indicator can be easily removed. Take off the indicator from the bunghole, lift it slowly. Thus is will be possible to pull it out from the venting plug. The cord will slide back into the indicator and be ready again to use

Manufacturer Part No. (MPN): 1292706
